The Most Reliable Transformers For Heavy-Duty EV Truck Charging Stations

Picking a qualified transformer manufacturer for heavy-duty truck charging stations means securing stable full-power operation for your entire charging hub.

The global electrification of heavy-duty trucks has boomed rapidly in recent years, driving urgent construction of supporting charging infrastructure. Ports, logistics parks, mining zones and highway service stations are rolling out 360kW dual-gun chargers and even megawatt-level ultra-fast charging piles one after another.

However, numerous charging projects hit a critical bottleneck after installation: mismatched heavy-duty truck charging transformers. Insufficient capacity, poor overload resistance and severe harmonic distortion burn out electrical equipment, leaving fully installed chargers unable to run at full rated power.

When you ask “Which heavy-duty truck transformer manufacturer is trustworthy?”, do not judge suppliers merely by low quotations. Focus on these three core evaluation criteria for long-term stable operation.

1. Strong Resistance To Short-Term Overload & Continuous Impact Loads

Heavy-duty truck charging works completely differently from passenger EV charging with slow 7kW power input. Single-gun charging starts at 180kW, while dual-gun 360kW charging becomes standard. Mining battery swap projects even reach over 1000kW peak power.

Dedicated box transformers for truck charging stations must solve two key design challenges:

Sufficient Capacity Margin

Common capacity specifications for truck charging depots include 2500kVA, 3150kVA and 4000kVA. Never design transformers to exactly match the theoretical load. We recommend reserving 15%–20% extra capacity margin for heavy-load peak hours.

Stable Short-Time Overload Tolerance

During concentrated fleet recharging rushes, transformers must withstand 150% rated load for 2 consecutive hours without overheating or tripping.

ChinaUnita Electric’s custom transformers for heavy-duty charging stations adopt S20 or higher energy efficiency grade with full copper windings. We reserve extra temperature rise redundancy specially for frequent heavy impact loads. For coastal port projects prone to salt fog corrosion, we upgrade to IP65 enclosures with anti-salt-spray coating, delivering stable long-term operation under harsh outdoor conditions.

2. Strict Harmonic Control & Premium Power Quality Management

High-power rectifiers inside heavy-duty chargers generate massive harmonic currents. Without effective suppression, severe total harmonic distortion (THD) will trigger transformer buzzing, blow reactive power compensation cabinets, and even bring fines from local grid authorities.

Reliable manufacturers integrate complete harmonic filtering and reactive power compensation modules inside the box substation in advance. All ChinaUnita truck charging transformers adopt an all-in-one prefabricated design combining transformer, low-pass harmonic filter, reactive power compensator and intelligent metering devices. We complete full harmonic simulation testing in the factory before shipment, cutting on-site grid connection rework drastically.

3. Fast Delivery & Compact Footprint To Accelerate Station Commissioning

Most heavy-duty charging hubs face two universal constraints: limited land area and tight construction deadlines.

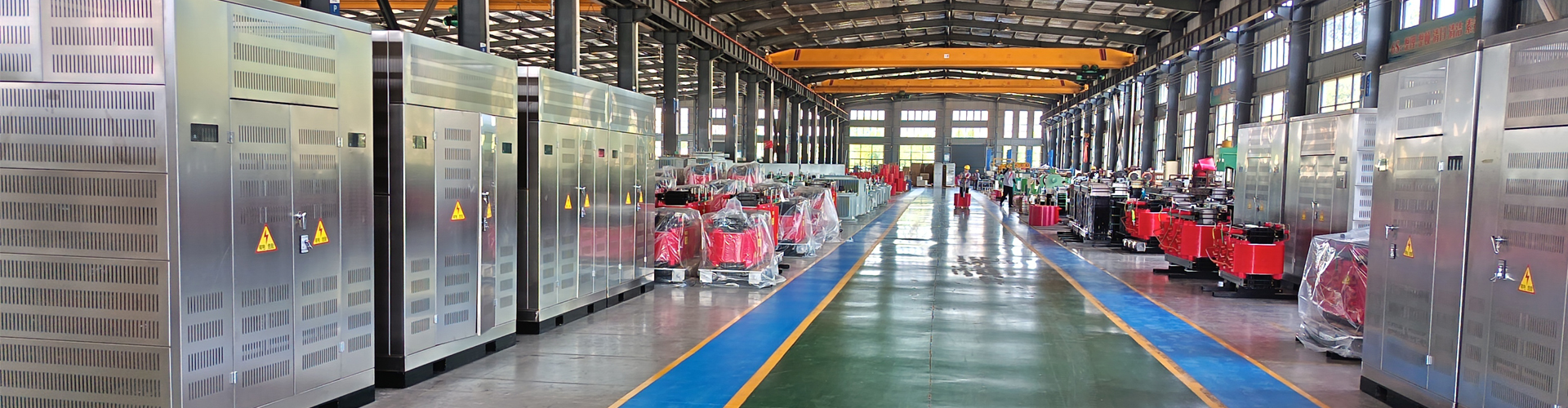

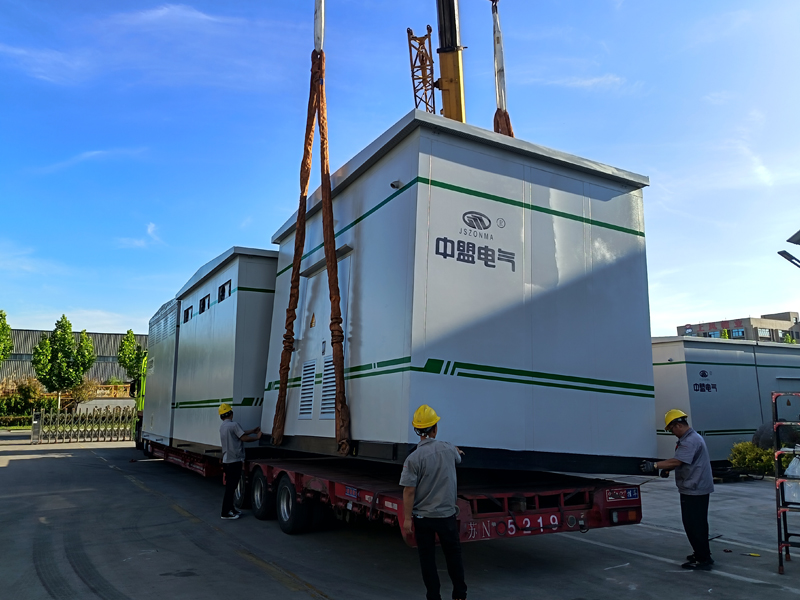

Compared with traditional civil-built transformers, prefabricated box-type stations are fully assembled inside the factory. On-site installation only requires crane placement and cable connection, cutting occupied land by nearly 50%.

For multiple logistics park charging projects, ChinaUnita Electric completes full delivery and grid connection within 20+ working days after order confirmation. Fast lead times help charging operators seize government subsidies and open commercial operation windows ahead of competitors.

Core Conclusion

Selecting a heavy-duty truck transformer manufacturer ultimately determines whether your charging station can finish construction on schedule and run at full rated power reliably. Three non-negotiable standards must be met: sufficient capacity margin, stable overload resistance, qualified harmonic suppression and fast delivery cycle.

ChinaUnita Electric has delivered dedicated charging box transformers for ports, logistics parks and open-pit mining zones worldwide. Our integrated power solutions deserve priority consideration for your next heavy-duty EV charging depot project.
