What Is a PV‑Wind Step‑Up Box‑Type Substation? Complete Guide for Renewable Projects

Many renewable energy project developers are familiar with box‑type substations, yet few fully understand how the PV‑wind step‑up box‑type substation works and its core value for solar and wind farms.

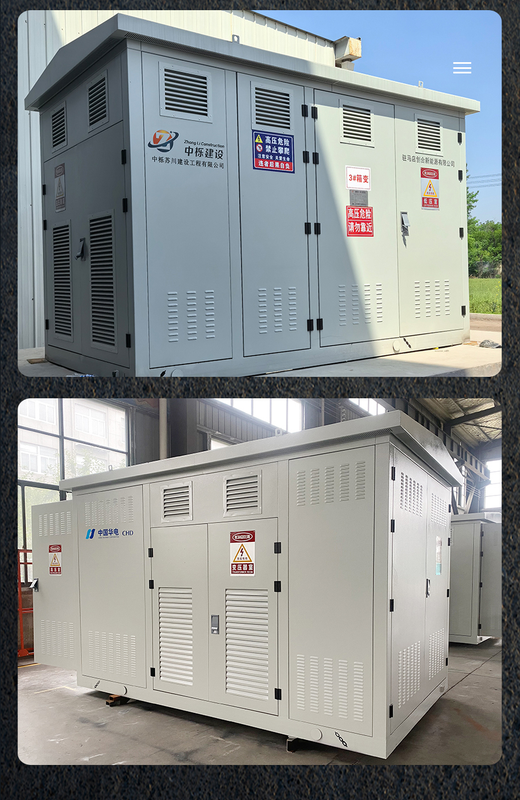

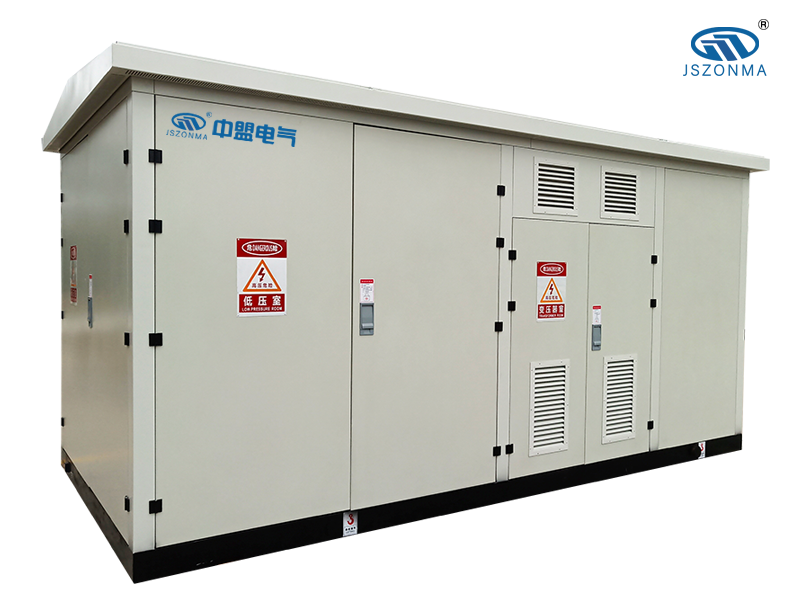

This pre‑fabricated integrated substation is specially designed for new‑energy power generation. It combines step‑up transformer, high‑voltage switchgear, low‑voltage switchgear, auxiliary power transformer and other supporting devices inside a single metal enclosure. It complies with the national standard GB/T 17467‑2020 for high‑/low‑voltage pre‑fabricated substations.

Core Technical Parameters

• Brand: JSZONMA
• Voltage level: 10kV
• Impedance voltage: Uk=6%
• Rated frequency: 50Hz
• Altitude: ≤1000 m
• Ambient temperature: -25℃ ~ +40℃
• Relative humidity: 5%‑95% R.H
• Protection class: IP54

Internal Structure & Working Principle

The box‑type substation is divided into separate compartments: low‑voltage compartment, transformer compartment and high‑voltage compartment.

1. Low‑voltage compartment: Receives power output from PV inverters or wind turbine converters, completes circuit protection and power collection.
2. Transformer compartment: Houses the step‑up transformer, which boosts low‑voltage power to 10kV high‑voltage for grid‑connection.
3. High‑voltage compartment: Equipped with high‑voltage switchgear to realize grid‑connecting, fault isolation and protection.

Power flow:

PV / Wind power generation → Inverter / Converter → Low‑voltage compartment → Step‑up transformer → High‑voltage compartment → Utility grid.

Key Advantages

1. Easy installation & maintenance Factory‑pre‑assembled and tested. On‑site work is greatly reduced. Each compartment has independent access doors for convenient daily inspection and repair.
2. Convenient transportation Integrated compact cabinet structure, suitable for road and sea transportation. Can be quickly delivered to remote solar or wind farm sites.
3. High safety & reliability Complete multi‑level protection: over‑voltage, under‑voltage, short‑circuit protection. The enclosed cabinet structure avoids external environmental interference and reduces operational risks.
4. Excellent anti‑corrosion & waterproof performance IP54 protection grade, anti‑corrosion cabinet shell, adapt to harsh outdoor weather conditions such as rain, dust and high humidity.
5. Small footprint Highly integrated design, saves land occupation compared with traditional open‑air substations. Ideal for large‑scale new‑energy power stations.

Main Functions for Renewable Power Plants

Voltage Regulation

Solar panels and wind turbines output fluctuating power under variable weather conditions. The step‑up box‑type substation monitors input voltage in real‑time and adjusts output voltage automatically, to keep the overall power generation stable.

Grid‑System Stability

It converts low‑voltage renewable power into 10kV high‑voltage AC power for grid‑connection. It supports parallel operation with other power equipment, improves grid‑side power supply capacity and system reliability.

Power‑Quality Assurance

Built‑in over‑voltage, under‑voltage, short‑circuit protection functions. Effectively prevent equipment damage and system failures caused by poor power quality.

Application Scenarios

This box‑type substation is widely applied to ground‑mounted solar power plants, wind farms, distributed new‑energy projects, and energy‑storage supporting power stations.

https://www.unitatransformer.com/contact-us/

Looking for custom PV‑wind step‑up box‑type substations? We provide complete BOM, single‑line drawings and factory‑tested equipment. Contact us for your project proposal.
