What Is GGD Low-Voltage PV Grid-Tie Cabinet? Solar Grid-Tied Solution

Excerpt：The GGD PV grid-tie cabinet is standard low-voltage distribution equipment for commercial solar systems. It integrates grid connection, multi-protection and energy metering in one compact cabinet, ensuring safe, stable and intelligent grid-connected operation for rooftop and industrial PV projects.

Overview

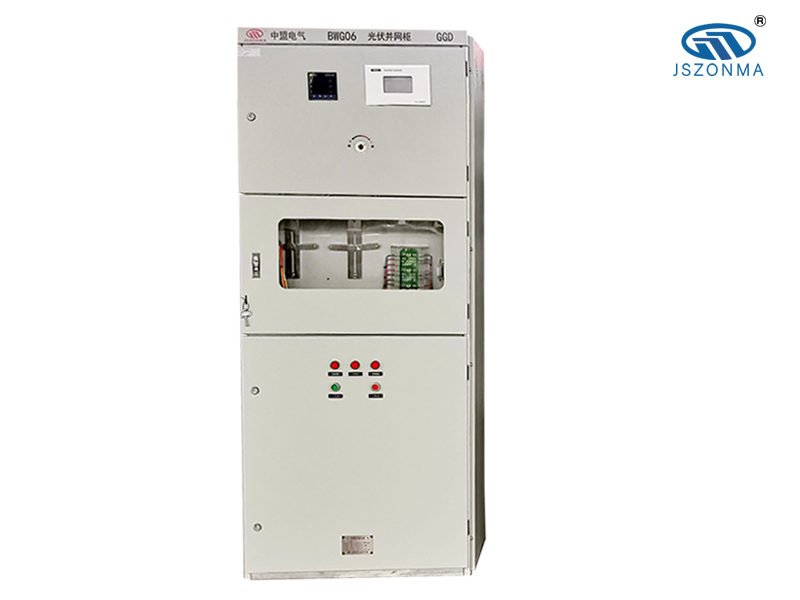

The GGD PV grid-tie cabinet is a dedicated low-voltage switching device for on-grid photovoltaic systems. Installed between solar inverters and step-up transformers, it serves as the core grid-connection interface. The cabinet integrates power distribution, full electrical protection, automatic grid reconnection and energy metering functions. It is widely used for stable and reliable grid access in commercial and industrial solar power projects.

What Is GGD PV Grid-Tie Cabinet

The GGD PV grid-tie cabinet is a standardized grid-connection control cabinet for low-voltage solar power stations. It undertakes key tasks including line switching, fault protection, grid state monitoring and power data recording. With integrated protection and metering modules, it enables safe, compliant and unattended grid-connected operation for PV systems.

Technical Parameters

Core Advantages

1. Complete Grid Protection

Equipped with anti-islanding, over/under voltage, over/under frequency and reverse power protection. It quickly trips under abnormal grid conditions to protect inverters and the entire PV system.

2. Automatic Grid Reconnection

After grid power recovers, the cabinet automatically completes detection and reclosing. It realizes intelligent and unattended grid-connected operation.

3. Accurate Energy Metering

Built-in sealed metering unit accurately records solar generation data. It fully meets grid company inspection and project settlement requirements.

4. Stable & Durable Structure

Industrial-grade cabinet and standardized internal layout ensure strong environmental adaptability. It supports long-term continuous operation in factories, rooftops and outdoor stations.

5. Easy Installation & Maintenance

Modular structure and clear wiring design simplify on-site installation and daily maintenance. It effectively reduces project construction and operation costs.

Main Functions

• Real-time grid voltage and frequency monitoring
• Full-range electrical fault protection
• Automatic grid connection and disconnection
• Accurate photovoltaic power metering
• Reserved remote communication and monitoring interface

Application Scenarios

Suitable for commercial rooftop solar systems, factory distributed PV stations and small and medium-sized grid-tied photovoltaic projects with power ranging from 100kW to 500kW.

Conclusion

The GGD PV grid-tie cabinet is essential supporting equipment for low-voltage solar grid-connected projects. It integrates protection, control and metering functions in one unit. With stable performance, complete safety design and simple operation, it provides reliable and compliant grid-connection solutions for various commercial and industrial photovoltaic systems.
