The PCS step-up integrated machine serves as the core full-link power conversion device for flywheel energy storage systems. It combines power conversion and voltage boosting functions inside one single cabinet. Furthermore, it achieves seamless connection between DC energy storage terminals and AC power grids or industrial loads.
In detail, in flywheel energy storage projects, this equipment undertakes three core tasks: high-speed power charging & discharging, precise voltage matching and optimized dynamic response. It acts as the critical hub to guarantee efficient, stable and safe operation of the whole flywheel energy storage system.
Core Technical Specifications & Performance Advantages
1. Bidirectional Power Conversion Capacity
It supports high-efficiency bidirectional conversion between 1500V DC on the storage side and 35kV AC on the grid side. Its power conversion efficiency reaches over 98.5%, and the switching time between charge and discharge modes is less than 5ms. This performance perfectly matches the flywheel’s characteristics of second-level response and frequent charge-discharge cycles.
2. Intelligent Step-Up Module
The built-in dry-type transformer and intelligent voltage regulation unit provide adjustable output voltage ranging from 10kV to 35kV. The control precision of voltage fluctuation is within ±0.5%, which meets grid connection standards and voltage matching requirements of various loads.
3. Modular Architecture
It adopts standardized assembled power modules with N+1 redundant configuration. Once a single module breaks down, it will be isolated automatically. The system availability reaches 99.9%, and overall maintenance cost is cut by 40%.
4. Enhanced Environmental Adaptability
The equipment achieves IP55 protection grade. Its operating temperature ranges from -30℃ to 65℃, and it reaches C5 anti-salt-fog corrosion level. It can run steadily in harsh scenarios such as coastal zones, frigid highlands and heavily polluted industrial areas.
5. Intelligent Monitoring System
An array of multi-parameter sensors (current, voltage, temperature, vibration) is embedded inside the machine. It collects real-time operating data and synchronizes information to cloud platforms via 5G or industrial Ethernet. It supports remote fault early warning, service life prediction and energy efficiency optimization.
Structural & Scene Matching Features of Flywheel Energy Storage PCS Step-Up Integrated Machine

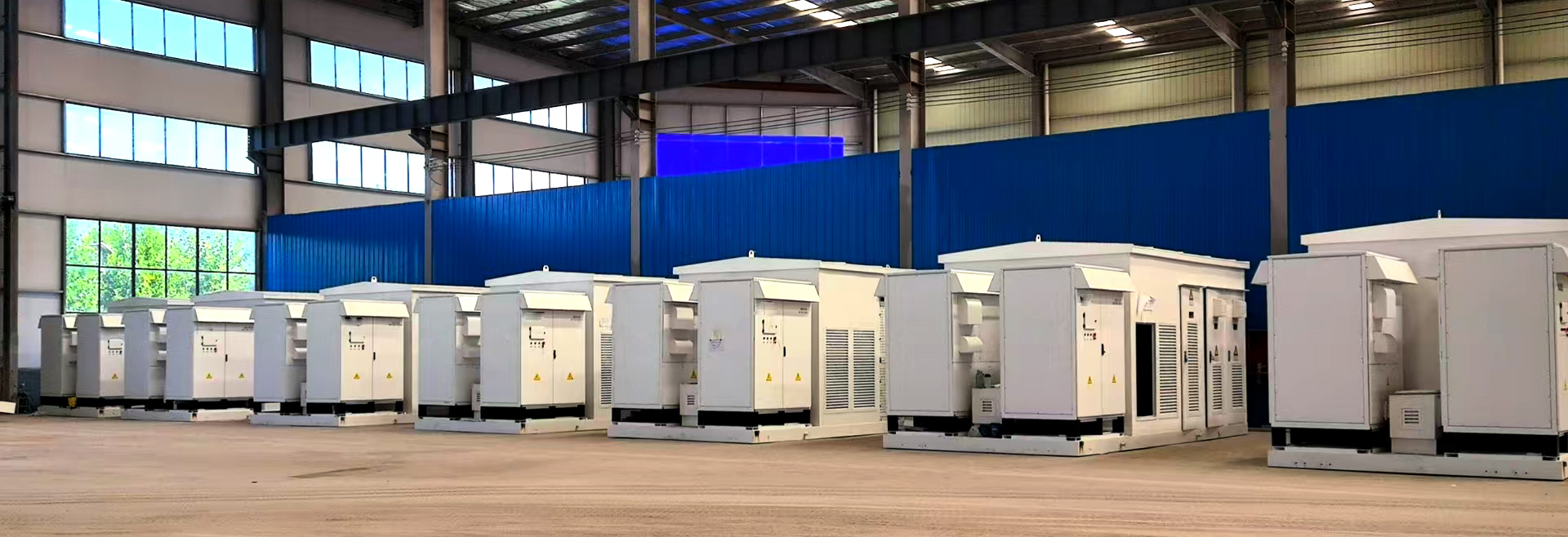

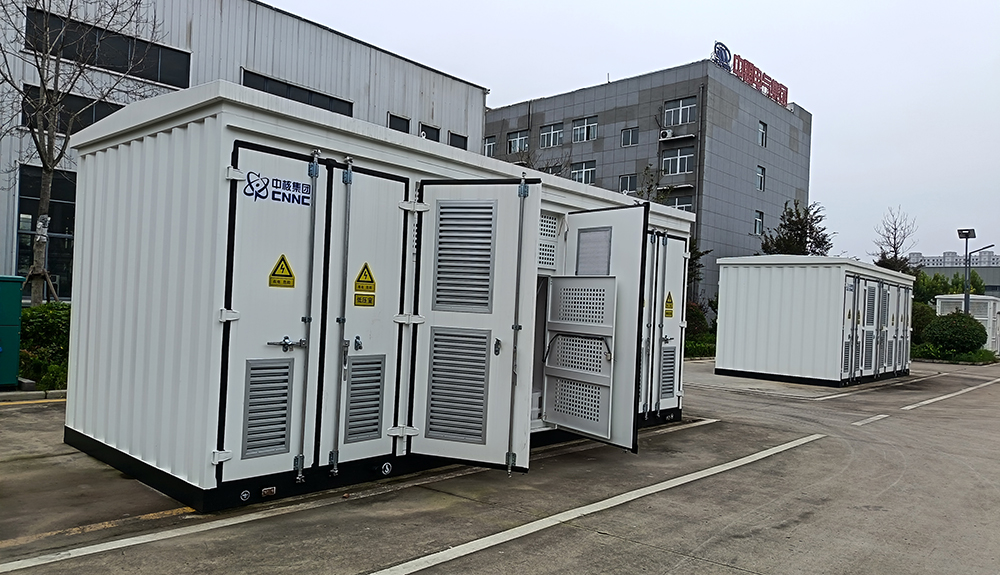

- Multi-compartment Cabinet StructureIndependent cabin doors are designed for each functional compartment. The layout supports flexible capacity expansion and convenient routine maintenance, adapting to limited space in industrial plants.

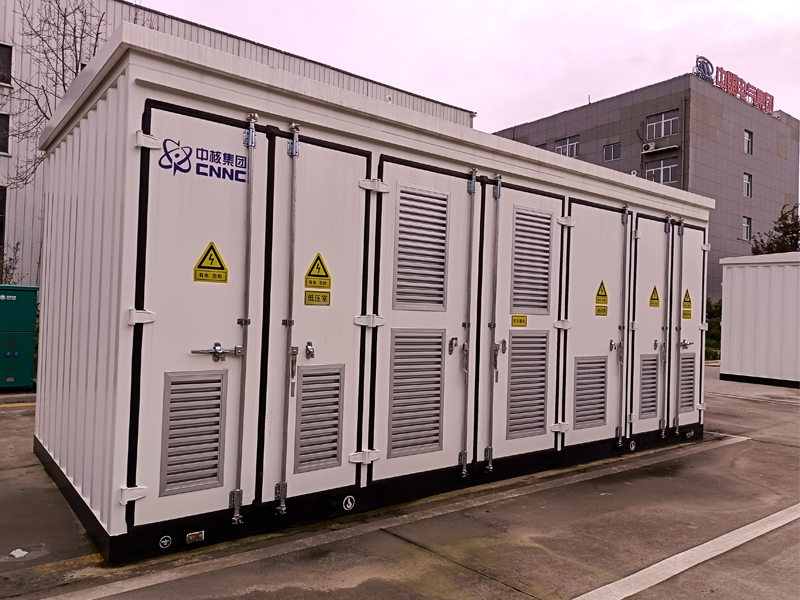

- Industrial-Grade Protection PerformanceThe whole machine adopts anti-corrosion white shell with yellow safety warning labels including electric shock hazard marks. It balances long service life and operation safety for field workers.
- High-Efficiency Conversion SystemThe built-in intelligent PCS control module precisely fits the unique charge-discharge curve of flywheel energy storage, lifting overall energy utilization rate above 98%.
- Strong Scene AdaptabilityCompact layout with top heat dissipation air ducts allows direct outdoor or indoor deployment in factories, data centers and other industrial energy storage sites. It greatly reduces civil engineering investment for project construction.
Conclusion
The flywheel energy storage PCS step-up integrated machine integrates conversion, boosting, monitoring and protection functions. With ultra-fast response, high efficiency and strong environmental tolerance, it becomes the standard supporting power equipment for industrial flywheel energy storage frequency regulation, peak shaving and emergency power supply projects.
