With the explosive growth of AI large models, cloud computing and digital infrastructure, modern data centers have raised higher standards for power stability and energy efficiency. As the core power connection device between the grid and computing facilities, 10kV and 35kV transformers directly determine the overall PUE level, operational stability and long-term energy costs. Correct transformer selection has become a key factor in reliable data center operation. This guide from ChinaUnita Electric explains three core principles for data center transformer configuration.
1. Voltage Level Selection: Match Load Scale and Grid Conditions
10kV Transformer (For Small & Medium-Sized Data Centers)
10kV transformers are ideal for data centers with a load capacity ≤20MW. They can be directly connected to regional distribution grids with lower investment costs and simpler construction. However, users must verify grid short-circuit capacity during selection to avoid overload risks and ensure long-term stable operation.
35kV Transformer (For Large-Scale Computing Centers)
35kV transformers are the preferred solution for large data centers with loads ≥30MW. High-voltage direct power supply effectively reduces line loss. Equipped with on-load tap changers, 35kV transformers adapt to frequent grid voltage fluctuations, making them highly suitable for weak grid areas and long-distance power transmission scenarios.
2. Energy Efficiency & Heat Dissipation: Solve Data Center High Energy Consumption Challenges

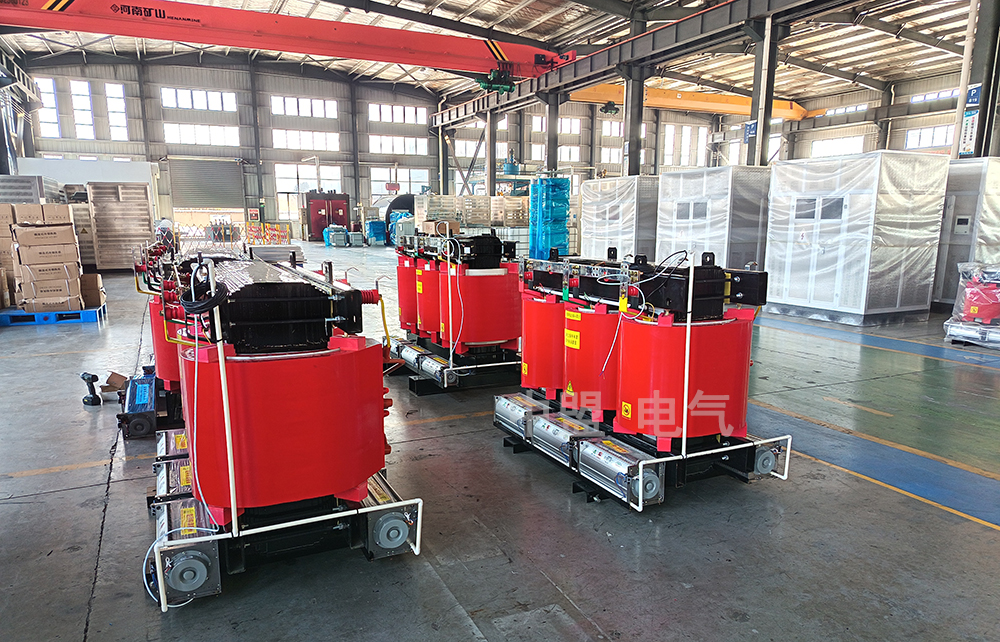

About 70% of data center energy consumption comes from IT equipment. Even a 1% improvement in transformer efficiency can save hundreds of thousands of kWh annually. ChinaUnita Electric recommends Level 1 high-efficiency dry-type transformers equipped with intelligent temperature control systems, including forced air cooling and heat pipe cooling technology.
This solution keeps full-load temperature rise below 60K and completely avoids oil leakage risks existing in oil-type transformers. In a leading cloud service provider project, high-efficiency customized transformers reduced the data center PUE from 1.4 to 1.28, saving more than $280,000 in annual electricity costs.
3. Reliability & Intelligence: Support Zero-Interruption Operation
Redundant Power Design
Data centers require 7×24-hour uninterrupted power supply. ChinaUnita Electric supports N+1 redundant configuration and dual-loop power supply solutions. Amorphous alloy core technology greatly reduces no-load loss, ensuring stable operation under long-term full-load and peak-load conditions.
Full Intelligent Monitoring System
Integrated partial discharge detection, real-time temperature monitoring and online operational analysis enable early fault warning via cloud IoT platforms. Intelligent monitoring eliminates potential power interruption risks and greatly improves daily operation and maintenance efficiency.
Practical Project Case: 35kV High-Efficiency Transformer for Large Computing Center
For a large western smart computing center, ChinaUnita Electric delivered a complete 35kV amorphous alloy transformer solution matched with full-set intelligent monitoring systems.
- Stereoscopic wound core structure: No-load loss reduced by 60% compared with national standard values
- On-load capacity regulation: Dynamically adjust capacity according to real-time computing load, improving comprehensive energy efficiency by 15%
- Cloud platform linkage: Realizes remote meter reading, precise fault location and intelligent operation, increasing O&M efficiency by 40%
Conclusion
Data center competition is essentially a competition of energy efficiency and power reliability. Transformer selection is not only simple equipment procurement, but also a long-term investment in operational cost control and stable computing capacity. From voltage level matching and high-efficiency heat dissipation to intelligent redundant monitoring, ChinaUnita Electric provides tailored transformer solutions for different computing scales, helping global data centers achieve lower PUE, lower consumption and zero-failure stable power operation.
