Can You Judge Transformer Quality From A Single Photo? 3 Key Details Veteran Buyers Check

You may doubt it: can you really judge transformer quality just from one photo? With more than a decade of transformer export experience, we’ve learned that seasoned procurement experts don’t bury themselves in lengthy datasheets. They only check three details to spot low-quality units quickly.

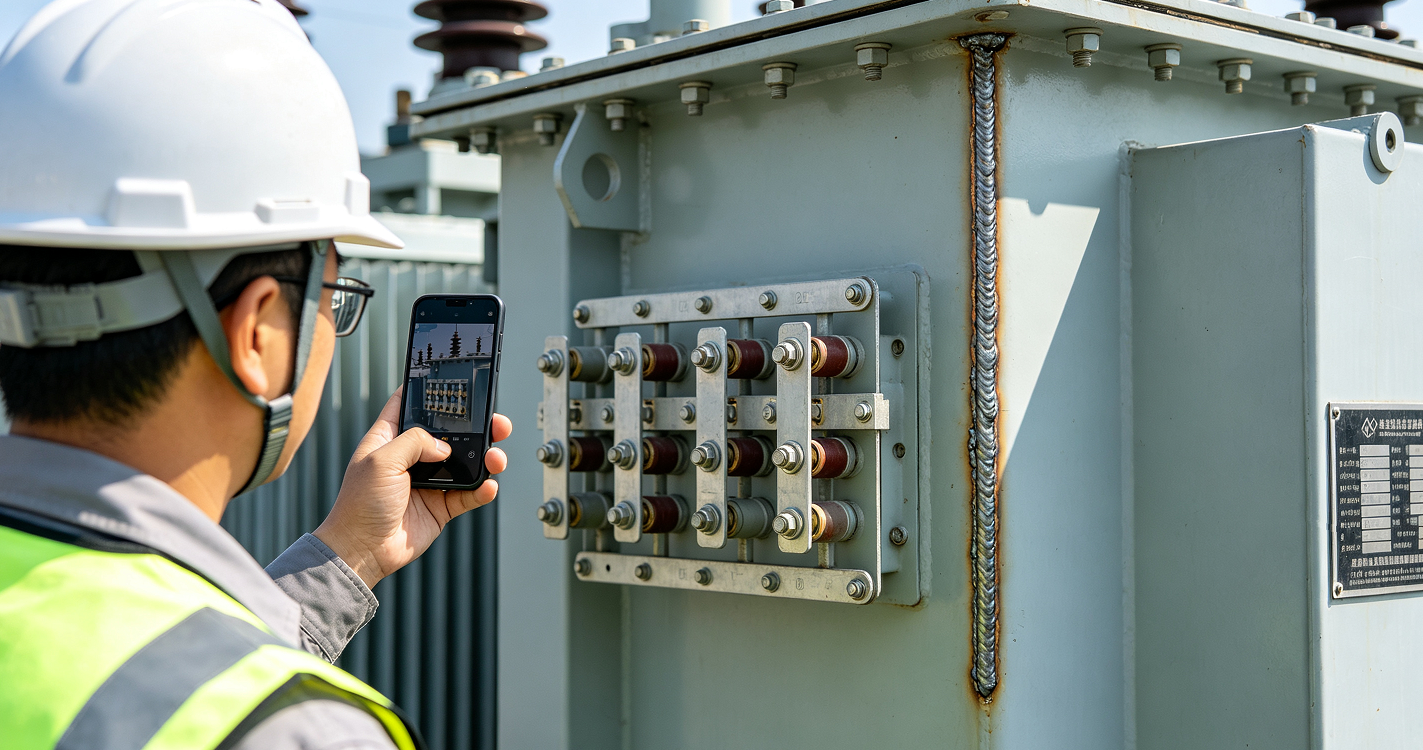

1. Terminal Material Check whether the terminals are pure copper or aluminum. Many cheap products adopt copper-plated aluminum terminals. They look bright at first glance, but will oxidate and overheat within half a year. Genuine red copper terminals have a dark red cross-section and feel heavy when held in hand.

2. Welds on the Oil Tank Zoom in on the tank weld seam. Good welds show uniform fish-scale patterns. Intermittent, uneven solder spots point to poor workmanship, and oil leakage may occur within 2–3 years. Our factory uses robotic automatic welding for all oil tanks, delivering smooth welds without pores, supporting leak-free operation for up to 10 years.

3. Sheds of Insulators Low-quality insulators have rough surfaces, air bubbles and flash burrs. Premium silicone rubber insulators have mirror-smooth surfaces with rounded shed edges, free of burrs. Imported silicone raw materials are used here, doubling the material cost.

A little-known fact: the biggest threat to transformers is not high voltage, but partial discharge. Defects in these three details will lead to excessive partial discharge, accelerating heat buildup, insulation aging and eventually equipment burnout.

Send us photos of the nameplate and terminals, and we can help evaluate whether the transformer is worth its price. Stay tuned. Next time, we will share how to assess transformer condition by listening to its operating sound.
