Are Transformers Truly Maintenancefree For Life? A Practical Maintenance Guide

Many purchasers and EPC contractors encounter marketing claims stating “lifetime maintenancefree transformers”. This sounds appealing, yet no highvoltage power transformer can operate totally unattended throughout its service life. Believing such overstated slogans may lead to insulation breakdown, catastrophic failure, project delay and heavy financial losses.

Whether oilimmersed or drytype, transformers suffer from oxidation, moisture ingress, dust accumulation and environmental erosion. Even wellmanufactured units require periodic inspection and service.

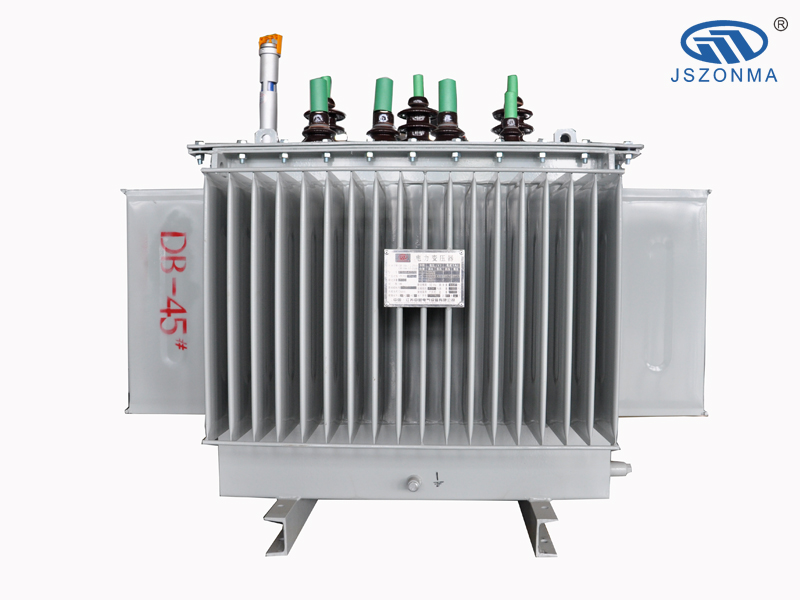

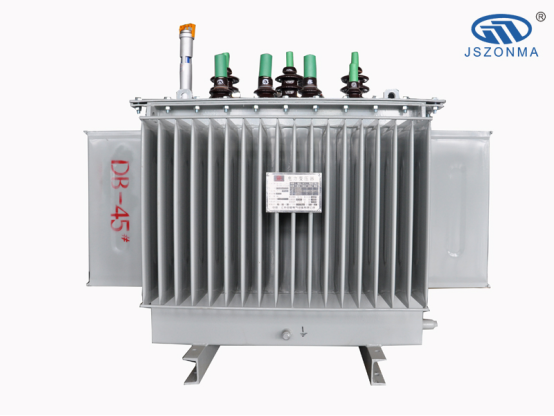

1. Oilimmersed Transformer: Insulating Oil Determines Service Condition

Insulating oil provides insulation and heat dissipation for oilimmersed transformers. During longterm operation, oil will degrade through oxidation, moisture contamination and metallic impurities, which sharply reduce dielectric strength.

Industry recommendation: Take oil samples for lab analysis at least once per year, testing dielectric strength, moisture content and acid value.

Without oil filtering or replacement when indicators degrade, internal electric arcs may occur and eventually destroy windings.

Note: For dusty CentralAsia or hothumid African sites, oil degradation accelerates; shorten sampling intervals accordingly.

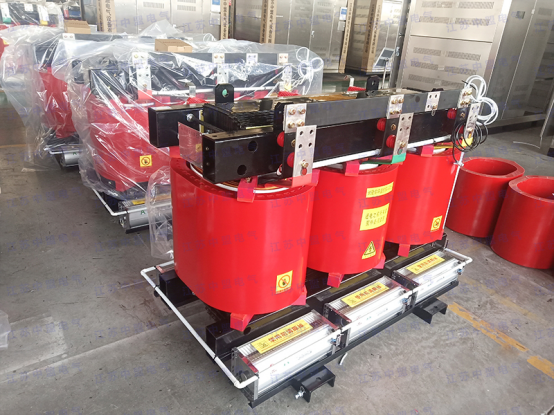

2. Drytype Transformer: No Oil Does NOT Mean No Maintenance

Some buyers assume drytype transformers require zero maintenance because they contain no insulating oil. This is incorrect. Drytype units rely on air convection and cooling fans for heat dissipation, with epoxy resin as main insulation. Main risks include:

1. Coolingfan blockage or failure leads to overtemperature and accelerated insulation ageing;
2. Heavy dust clogs cooling channels, especially in desert and Gobi regions of Central Asia & North Africa;
3. Thermal cycling, UV radiation and environmental stress may cause epoxy resin cracking over years.

Routine work includes dust cleaning, fan function check and visual inspection for resin cracks. Neglecting inspection will eventually trigger failures.

3. Realworld Case: Heavy Losses Caused By “Maintenancefree” Claim

One distributor purchased an outdoor transformer advertised as “lifetime maintenancefree” to cut costs. Only two years after commissioning, heavy rain caused insulation breakdown and total unit failure.

Besides full equipment loss, project schedule was delayed and the distributor paid around 200 000 CNY compensation. The original manufacturer could no longer be contacted after the accident.

This demonstrates the realworld risk of trusting overhyped “maintenancefree” marketing.

4. Why Do Some Manufacturers Promote “Lifetime Maintenancefree”?

It is purely marketingdriven. The “maintenancefree” slogan reduces buyer concerns and speedsup sales.

Nevertheless, manufacturers cannot control onsite conditions: temperature, dust, humidity and actual load variations. The “lifetime maintenancefree” statement contradicts realworld engineering practice.

5. Responsible Manufacturer Practice: Honest Guidance Instead Of Exaggeration

Reliable manufacturers avoid misleading “maintenancefree” claims. Instead, they deliver clear service guidance: what items to inspect and recommended service intervals.

Our factory principles:

1. Complete maintenance manuals supplied with every unit, for both oilimmersed and drytype transformers. English / Russian versions are available for export orders.
2. Remote technical support for abnormal conditions, with onsite service available when required.

A transformer is comparable to an automobile: premium build quality cannot remove the need for regular maintenance. Periodic inspections extend service life and prevent severe accidents.

Conclusion

Do not expect “setandforget” highvoltage transformers. Stay alert to “lifetime maintenancefree” marketing hype. Build reasonable maintenance schedules adapted for local site conditions (domestic China, CentralAsia, Africa desert / coastal sites). Regular inspection is the real way to secure powersupply safety and lower totalofownershipcost.
