S11-M-1000kVA fully sealed all-copper oil immersed transformer, national grid certified, low loss low noise, 3-year warranty, suitable for Central Asia urban, factory and rural outdoor power distribution projects.
In 2026, urban power renovation and factory construction keep expanding across Central Asia. To be specific, Kazakhstan, Uzbekistan and Kyrgyzstan are building numerous residential districts, industrial parks and rural power supply stations. For most outdoor distribution sites, fully sealed oil immersed transformers remain a balanced choice of cost and stability. For this reason, the S11-M-1000kVA 10kV all copper oil immersed transformer for Central Asia municipal grid has become a common standard unit for local EPC firms and power grid operators.
Many project buyers pick aluminum-wound transformers to cut upfront costs. However, these cheap units create obvious long-term troubles: higher power loss, weaker overload capacity and faster insulation aging after years of outdoor operation. With that in mind, this article shares real product specs, verified manufacturing details and practical strengths of ChinaUnita Electric S11-M-1000kVA all-copper sealed oil transformer, as well as its suitable application scenarios for Central Asian power projects.

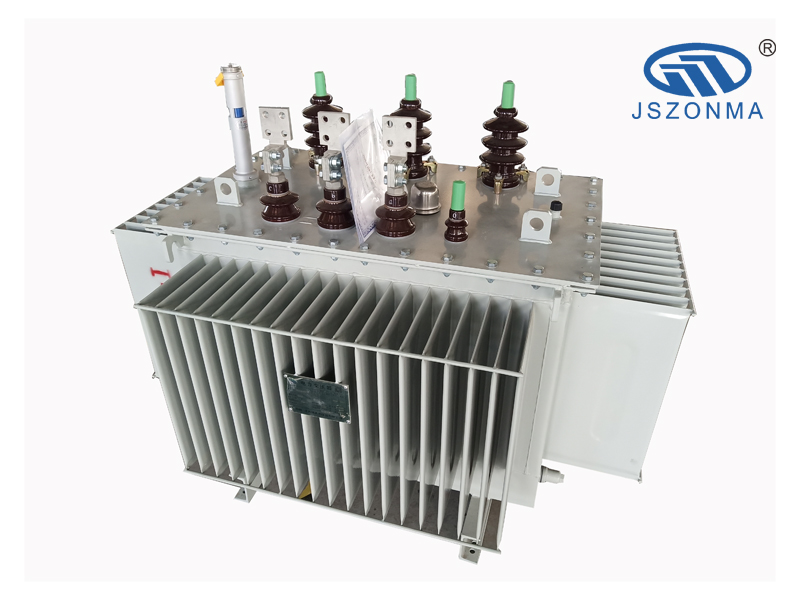

Basic Product Specs of S11-M-1000kVA Oil Immersed Transformer
First of all, the S11-M series is a mature fully sealed 10kV oil immersed power transformer that follows full national grid production standards. The model S11-M-1000kVA-10/0.4 uses pure all-copper winding as standard, which delivers more stable conductivity than aluminum alternatives.
This transformer is manufactured at our factory based in Suining County, Xuzhou City, Jiangsu Province. We specialize in custom 10kV power transformers, with a full range of capacity options, mature production techniques, reliable raw material selection and controllable delivery lead times. Our product capacity covers 30kVA to 2500kVA to fit small rural grids and large industrial power stations alike. Meanwhile, we provide a consistent 3-year global warranty for all transformers to cover basic after-sales needs. Since material prices fluctuate regularly, send your full project parameters to our sales team to get a real-time accurate quotation.
1. Energy-Saving & Low-Noise Structure Cuts Daily Operation Burden
To start with, energy consumption and noise are two key factors for urban and factory power distribution equipment. Compared with older S10 models, our S11-M transformer effectively lowers no-load and load loss, which helps project owners save continuous electricity costs over its 20-year service life. At the same time, optimized internal coil and core layout reduces running vibration, so the noise level meets the environmental limits of residential zones and commercial facilities.
On top of energy-saving performance, the fully sealed vacuum oil filling design greatly reduces daily maintenance work. Unlike open-type oil transformers that require regular oil sampling and sealing inspections, this sealed unit only needs simple visual checks every several months. This feature fits remote Central Asian mine suburbs and rural power grids that lack full-time electrical maintenance staff.
2. Stable Core & Winding Craftsmanship Adapts To Harsh Central Asia Outdoor Climate
Furthermore, raw material and processing standards directly decide the transformer’s lifespan and outdoor adaptability. For the iron core, we adopt high-permeability grain-oriented cold-rolled silicon steel sheets. This material cuts magnetic loss and weakens running vibration during long-term full-load operation.
For internal windings, all coils are arranged in concentric layers, with corrugated oil duct paint-free binding technology. This design balances heat dissipation and mechanical strength, avoiding local overheating under frequent load changes. As for the tank body, it is assembled with corrugated wall plates and finished with powder spraying coating. The coating sticks tightly to the steel surface, resisting sand abrasion and UV damage under year-round desert sunlight.
Besides, the whole tank goes through complete vacuum oil filling processing. This step removes all moisture trapped inside the transformer during production. It stops condensation from forming inside the tank, which is critical for Central Asia’s large day-night temperature swings and dusty Gobi environment.
Alt text: High permeability silicon steel core and corrugated sealed tank craft of S11-M 1000kVA all copper oil transformer
3. All-Copper Winding Improves Weak Grid Adaptability
In addition to solid craftsmanship, the all-copper winding is the core practical advantage of this S11-M model. Copper wire has lower resistance than aluminum, which reduces heat generation during peak power periods. It also offers stronger overload tolerance to handle sudden power surges from factory machinery.
Most remote Central Asian power grids suffer voltage fluctuation up to ±18% due to long transmission lines. The all-copper winding structure can bear such unstable voltage without rapid insulation aging. Combined with the fully sealed cabinet, sand, dust and humid air cannot touch internal coils, lowering unexpected shutdown risks caused by local sandstorms.

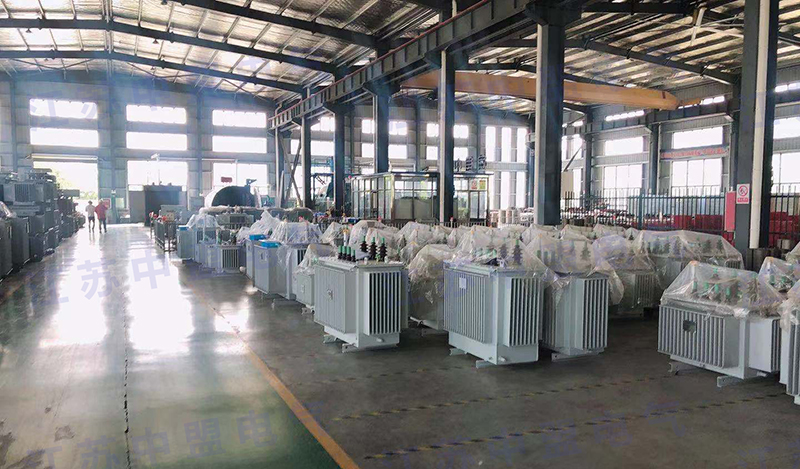

4. Standardized Factory Production Ensures Consistent Quality
Apart from product performance, stable quality delivery is essential for large municipal and industrial EPC projects. Every S11-M transformer is produced and tested following national grid standards in our standardized large workshop. We do not cut corners on raw materials to chase the lowest market price, so each finished unit can run stably for decades under continuous outdoor conditions.
Our complete production line supports bulk order production with predictable delivery cycles. If you have urgent grid renovation or factory supporting projects, we can arrange priority manufacturing to shorten your waiting time. Every transformer passes a full set of performance tests before shipment, with complete test reports attached for local grid acceptance in Kazakhstan, Uzbekistan and Kyrgyzstan.
Core Application Scenarios In Central Asia
Thanks to its all-copper winding, low loss, dust-proof sealed and wide-temperature adaptive design, the S11-M-1000kVA 10kV all copper oil immersed transformer for Central Asia municipal grid works well in these local projects:
- Urban municipal power grid upgrade and residential community distribution substations
- Manufacturing factories, processing plants and industrial park internal power supply
- Shopping malls, schools, hospitals and other public facility power transformation
- Auxiliary step-down equipment for distributed solar and wind power stations
- Remote rural power grid reconstruction projects across Kazakhstan and Uzbekistan
To sum up, low-cost aluminum winding transformers and outdated open-type distribution equipment cannot stand Central Asia’s long-term outdoor operation demands. They bring continuous energy waste, loud running noise and frequent insulation failure risks. In contrast, ChinaUnita Electric S11-M-1000kVA fully sealed all-copper oil immersed transformer combines low power loss, low noise, dust-proof, anti-condensation and low-maintenance features in one unit.
It fully complies with national grid manufacturing standards and adapts well to the extreme temperature and sandy outdoor environment of Central Asia’s cities, factories and rural Gobi areas. What’s more, we offer customized capacity, voltage and accessory schemes, complete bilingual tender documents and a unified 3-year warranty service. If you need reliable 10kV all-copper sealed oil transformers for municipal or industrial power projects, contact us for free technical matching and real-time quotation.
