Why Choose Integrated Cabin for Flywheel Energy Storage?

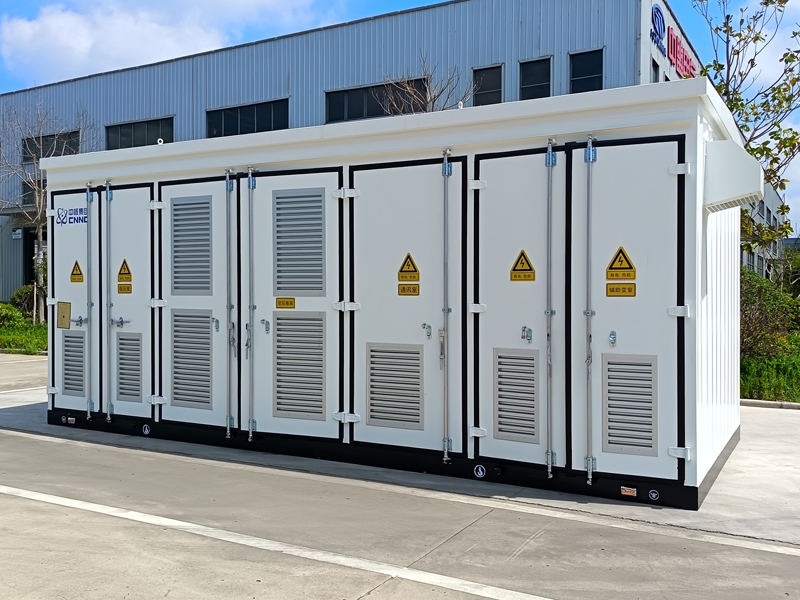

The flywheel energy storage converter and step-up integrated cabin is a core integrated device for flywheel energy storage systems. Adopting modular prefabrication technology, it collects electrical power from distributed flywheel units and integrates power output. Finally, it forms a controllable megawatt-level power source.

Different from traditional separate layouts, this product features high integration and intelligent design. It effectively boosts system efficiency, operational reliability and space utilization. It is widely used for grid frequency regulation, new energy matching and microgrid support.

Main Drawbacks of Traditional Solutions

Traditional discrete equipment brings many troubles to flywheel energy storage projects. Here are four common pain points.

1. Complicated wiringEvery flywheel unit needs an independent converter, low-voltage cables and separate transformer. This leads to redundant on-site wiring and a sharp increase of potential fault points.
2. Large land occupationConverged low-voltage cables and scattered equipment take up a lot of space. It also limits the flexibility of project expansion.
3. Low energy efficiencyEnergy has to go through multiple conversion steps from flywheel to converter and step-up transformer. Combined with line loss, the overall system efficiency drops obviously.
4. Hard daily operation & maintenanceIt is difficult to manage multiple devices cooperatively. Technicians will spend plenty of time locating and fixing faults.

Advantages of Integrated Cabin Solution

Our all-in-one cabin perfectly solves the above problems, with outstanding strengths in multiple aspects.

1. Modular Integration

This standard cabin integrates conversion, step-up, protection and monitoring functions. The power range of single cabin covers 5MW to 20MW, and you can connect multiple cabins for capacity expansion freely.

Take the 5800kVA cabin as an example. It can combine 20 to 30 flywheel units to output megawatt-level power. Meanwhile, it reduces land occupation by 60%.

2. High-efficiency Power Integration

We apply high-voltage cascaded energy storage topology to cut energy conversion links. The comprehensive system efficiency reaches over 90%.

Besides, the built-in intelligent power distribution algorithm adjusts charging and discharging strategies of each flywheel dynamically. It prevents local overload effectively.

3. Intelligent Operation & Maintenance

The cabin is equipped with remote monitoring and predictive maintenance systems. It tracks temperature, vibration, insulation and other data in real time, with a fault location accuracy of 95%.

It supports one-click grid connection, off-grid switching and black start. The response time is less than 20ms, which fully meets the requirements of high-frequency grid frequency regulation.

Core Technical Highlights

1. Compact Cabin Structure

The cabin uses aluminum alloy shell with IP54 protection grade. It matches forced air cooling and phase change heat dissipation systems, working stably at temperatures from -40℃ to +55℃.

With standard 35kV/0.69kV interfaces, it is compatible with mainstream grid protocols and supports plug-and-play.

2. Multi-layer Safety Protection

Dual protection including flywheel mechanical braking and electrical protection ensures safe shutdown under extreme working conditions.

The built-in fire linkage system adopts gas fire extinguishing devices, and the fire response time is within 3 seconds.

3. Full Lifecycle Services

We provide one-stop services including scheme design, equipment delivery and operation training. Remote diagnosis and quick spare parts replacement are also available.

Key components such as magnetic levitation bearings and IGBT modules have a service life of over 100,000 hours. It cuts the overall operation and maintenance cost by 40%.

Typical Application Scenarios

• Grid frequency regulation: It responds to grid frequency fluctuations rapidly. The annual frequency regulation capacity can reach 3 million MW, bringing a 30% profit increase.
• New energy matching: It stabilizes power fluctuation of wind and solar power, improves power quality and reduces wind & solar curtailment.
• Microgrid support: It acts as a black start power supply to guarantee stable operation of isolated microgrids.

Facebook

Customer Benefits

1. Cost reduction & efficiency improvement: Compared with traditional solutions, it reduces cable cost by 30% and land use by 50%. The full investment payback period is shortened to 5 years.
2. High reliability: The system failure rate drops by 70%, with annual downtime less than 2 hours.
3. Flexible expansion: The modular design allows phased construction and capacity expansion, fitting projects of all scales.
