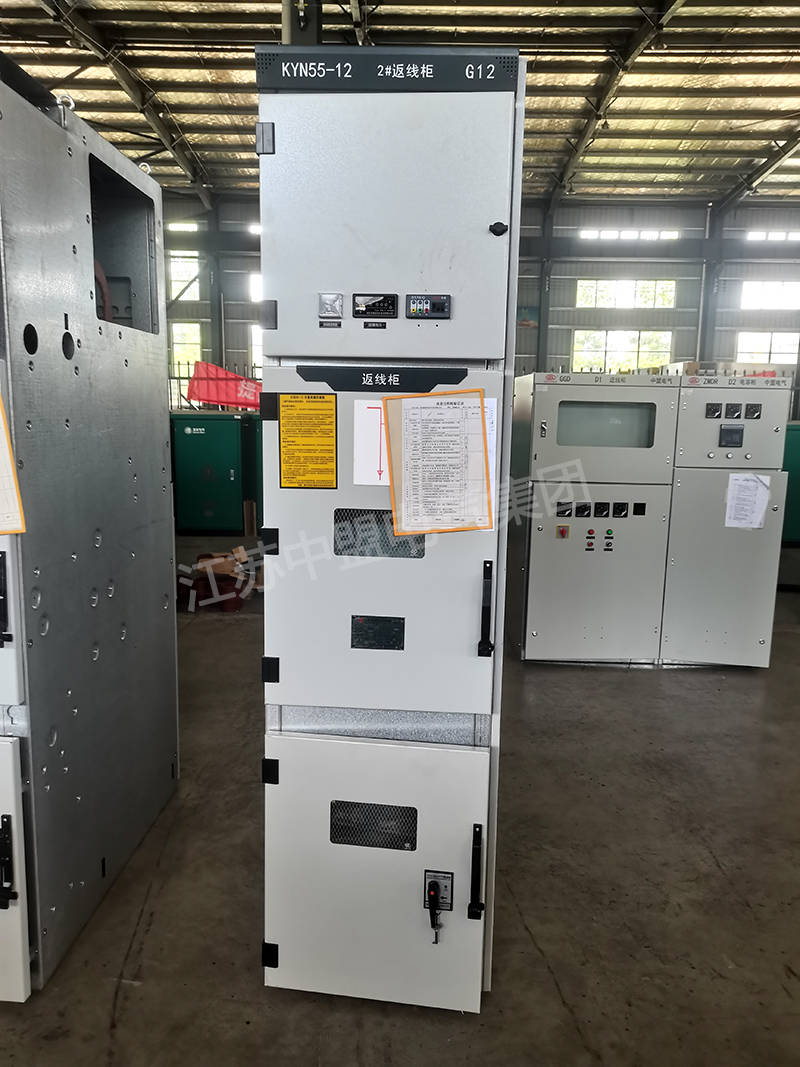

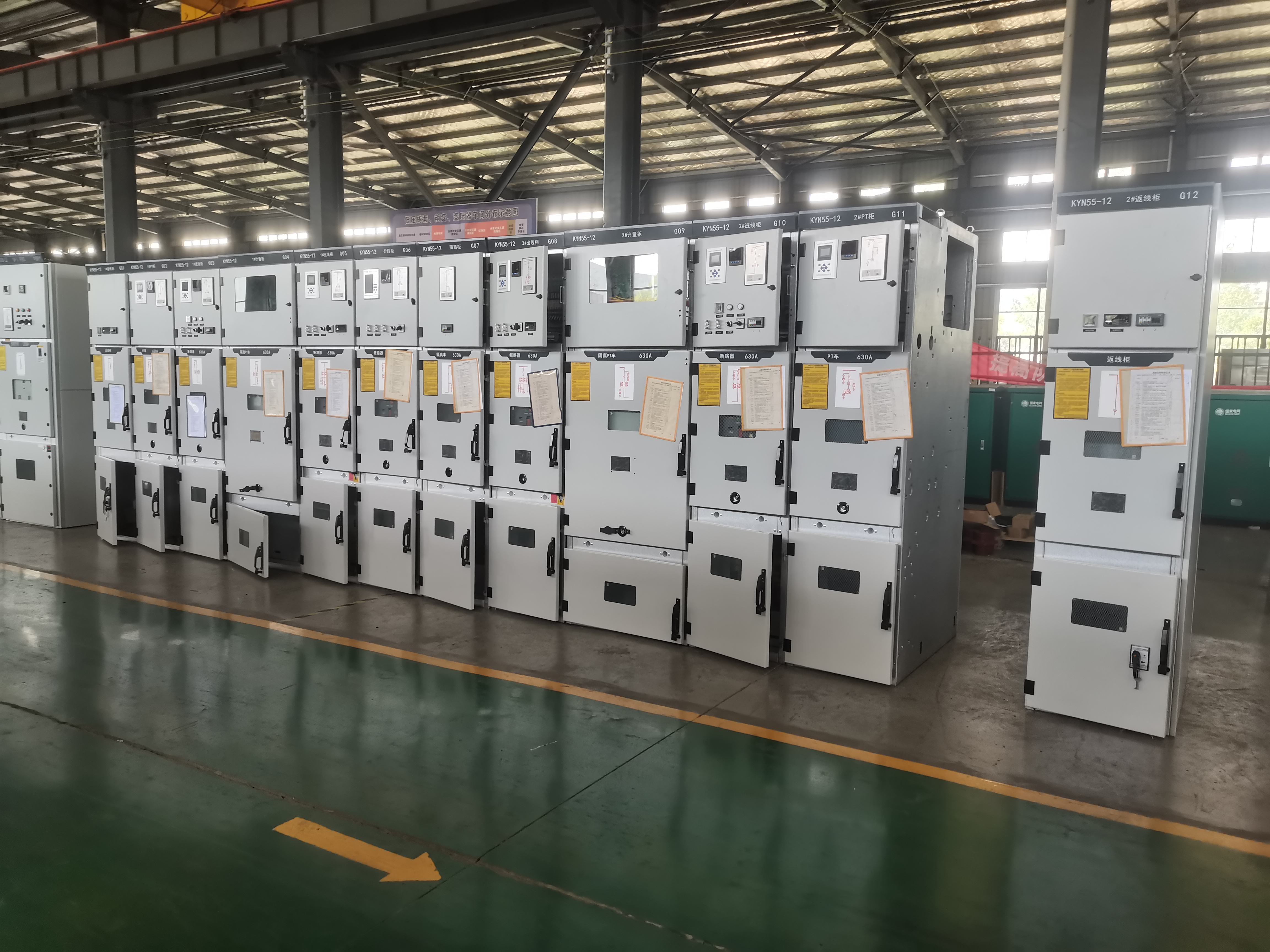

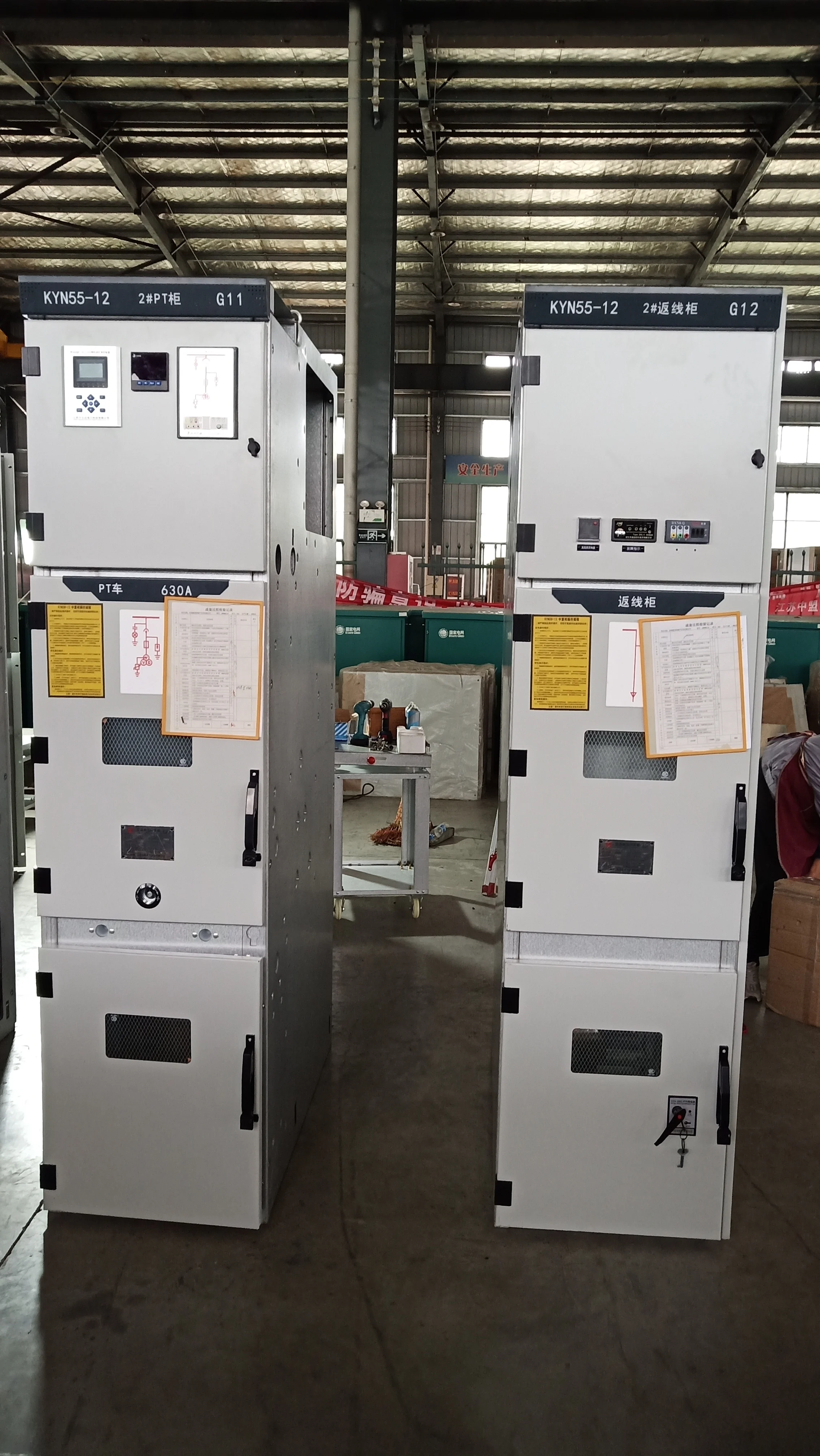

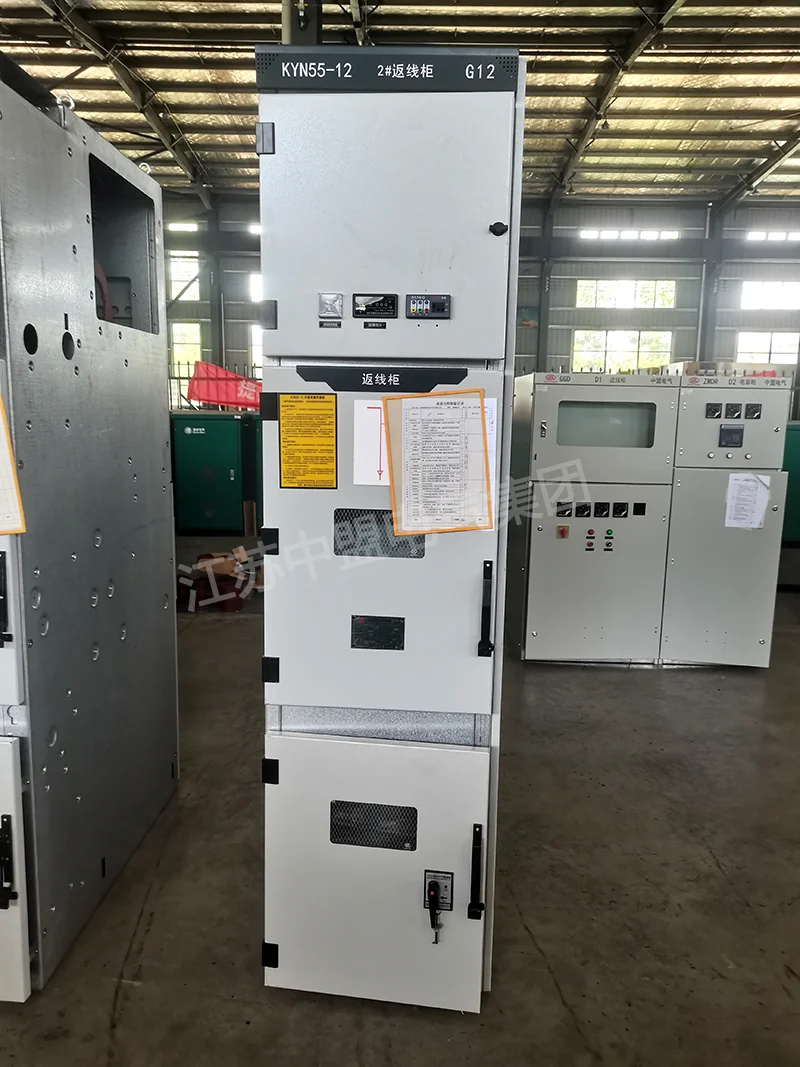

KYN550-12 high-voltage switchgear — Product Overview
"> KYN550-12 high-voltage switchgear is a high-performance switchgear developed and manufactured by VoltCloud Electric. It is a better product than 28 cabinets.
VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.
Key Specifications
| Item | Value |
|---|---|
| Rated voltage | 10kV, 12kV |
Need a rating that is not listed? Send us your duty sheet and we will confirm feasibility and lead time.
Features & Construction
- KYN550-12 miniaturized switchgear is currently one of the smaller and more insulated central switchgear devices, suitable for complete sets of 10kV three-phase AC 50Hz single busbar and busbar segmented equipment.
- The KYN550-12 product is a new generation of medium voltage air insulated metal armored handcart style switchgear developed with the continuous advancement of medium voltage switchgear technology.
- It adheres to the characteristics and operating specifications of the KYN28A-12 series products, and has improved key technologies such as insulation technology, temperature rise control, and creepage distance.
Product Details
It is mainly used for power distribution in power plants, industrial and mining enterprises, as well as for the secondary transformation and transmission of power systems, and for the starting of large high-voltage motors, for the purpose of controlling, protecting, and monitoring them.
Ultimately, it not only achieves a compact size, but also surpasses the existing KYN28A-12 series products in terms of technical indicators. It is the main power supply product needed for future power grids to save land, energy consumption, maintenance, and capacity expansion at 12kV voltage levels.
Typical Applications
- Distribution networks and utility substations
- Industrial plants, mining and infrastructure projects
- Solar PV, wind and battery energy-storage projects
- Commercial buildings, data centres and public facilities
Testing, Certification & Delivery
- Routine tests on every unit, with test records supplied.
- Type-test reports and qualification certificates available on request.
- Export packing, documentation and installation guidance for overseas projects.
FAQ
Can the ratings be customised?
Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.
What is the lead time?
Lead time depends on rating and quantity. Contact our sales team for the current production schedule.
Do you supply test reports?
Every unit ships with routine test records; type-test reports are available for the relevant series.
Request a Quote
Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
