Energy storage grid-connected cabinet — Product Overview

"> The photovoltaic low-voltage grid connected cabinet is mainly used for distributed photovoltaic power generation projects in AC 400V low-voltage systems.

VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.

Features & Construction

• The anti islanding device has passive islanding detection, automatic closing under pressure, overvoltage and undervoltage protection, high and low frequency protection, reverse power protection, etc.
• The anti islanding protection device has the functions of voltage loss tripping (power grid voltage loss) and automatic reclosing under voltage.
• It trips when the voltage is abnormal, and can automatically connect to the grid and close when the voltage returns to normal.
• Photovoltaic grid connected cabinets can be equipped with metering warehouses with lead sealing devices, which can effectively prevent electricity theft.
• Measuring devices and negative control devices (usually provided by the local power supply bureau) can be installed in the measuring warehouse, which can effectively record the power generation situation.

Product Details

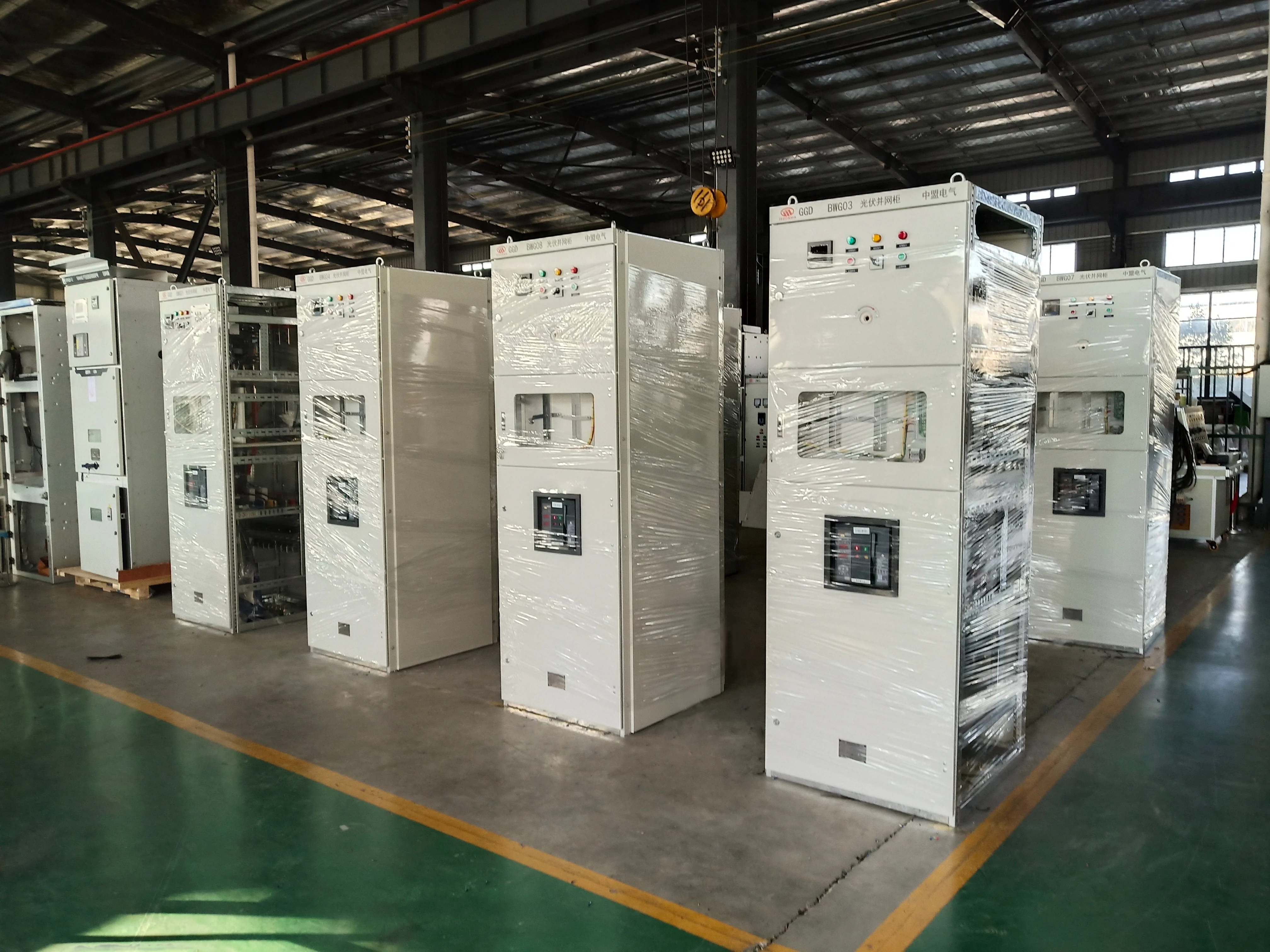

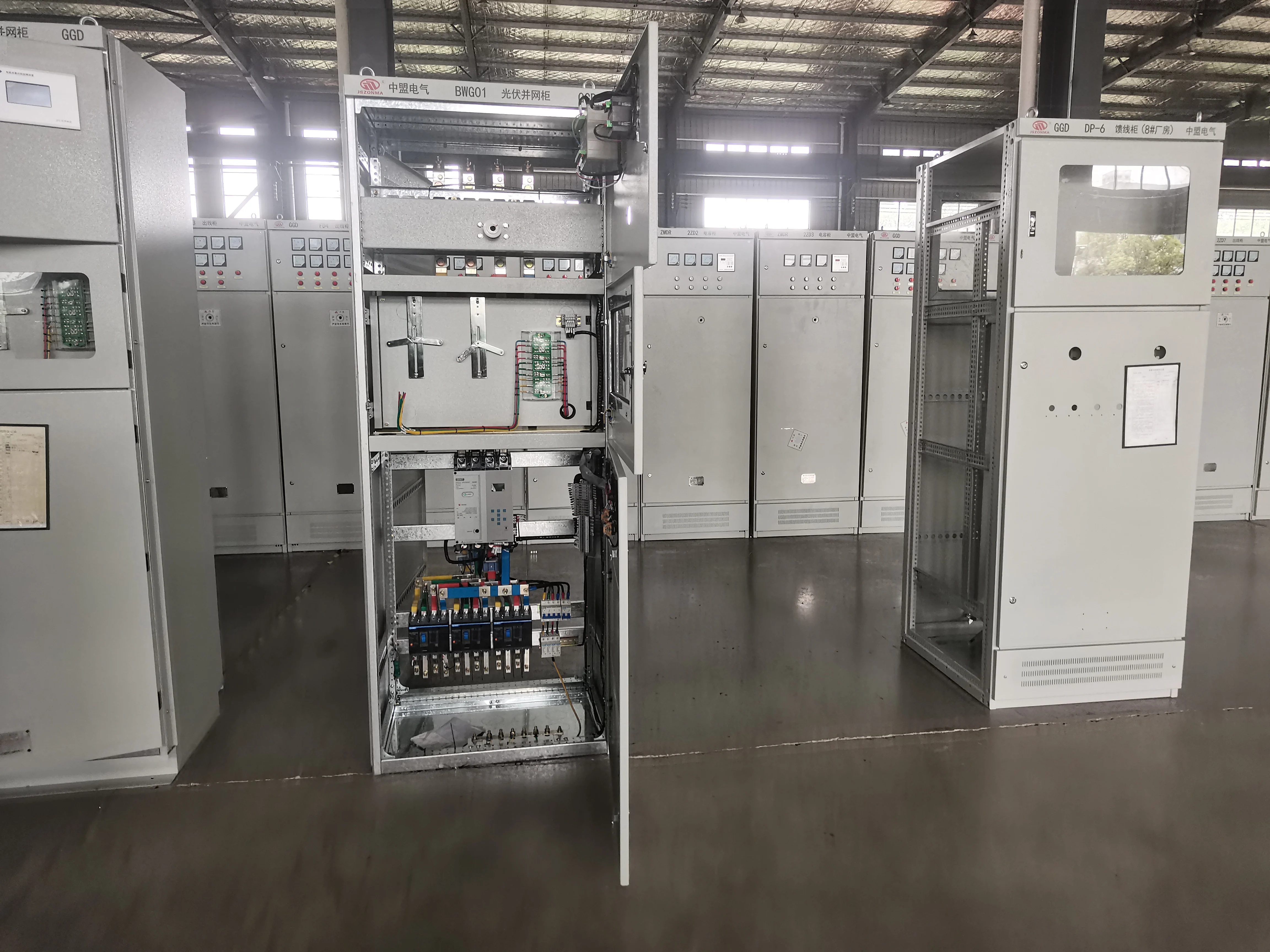

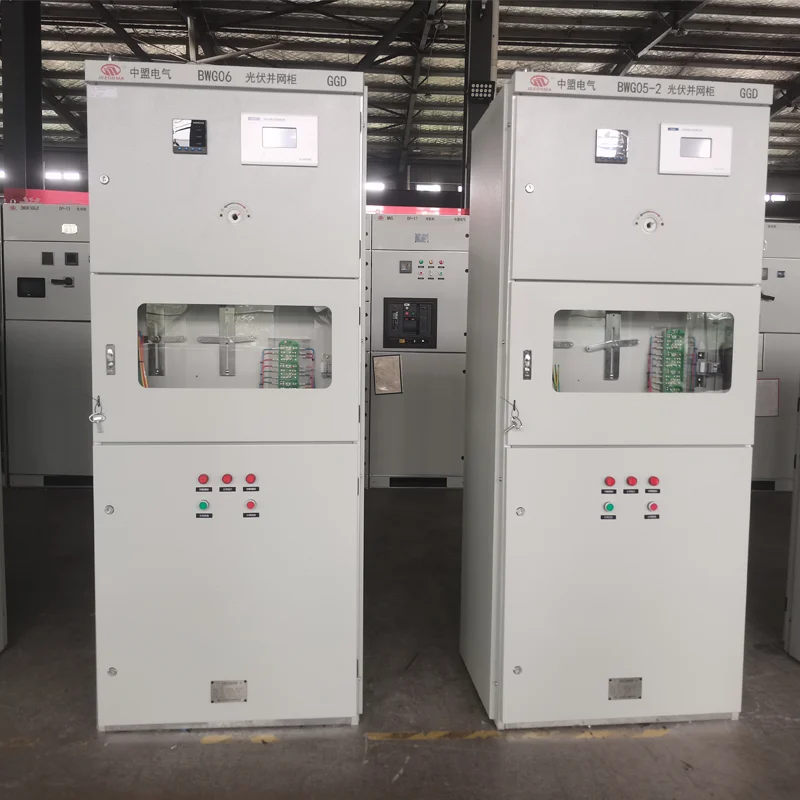

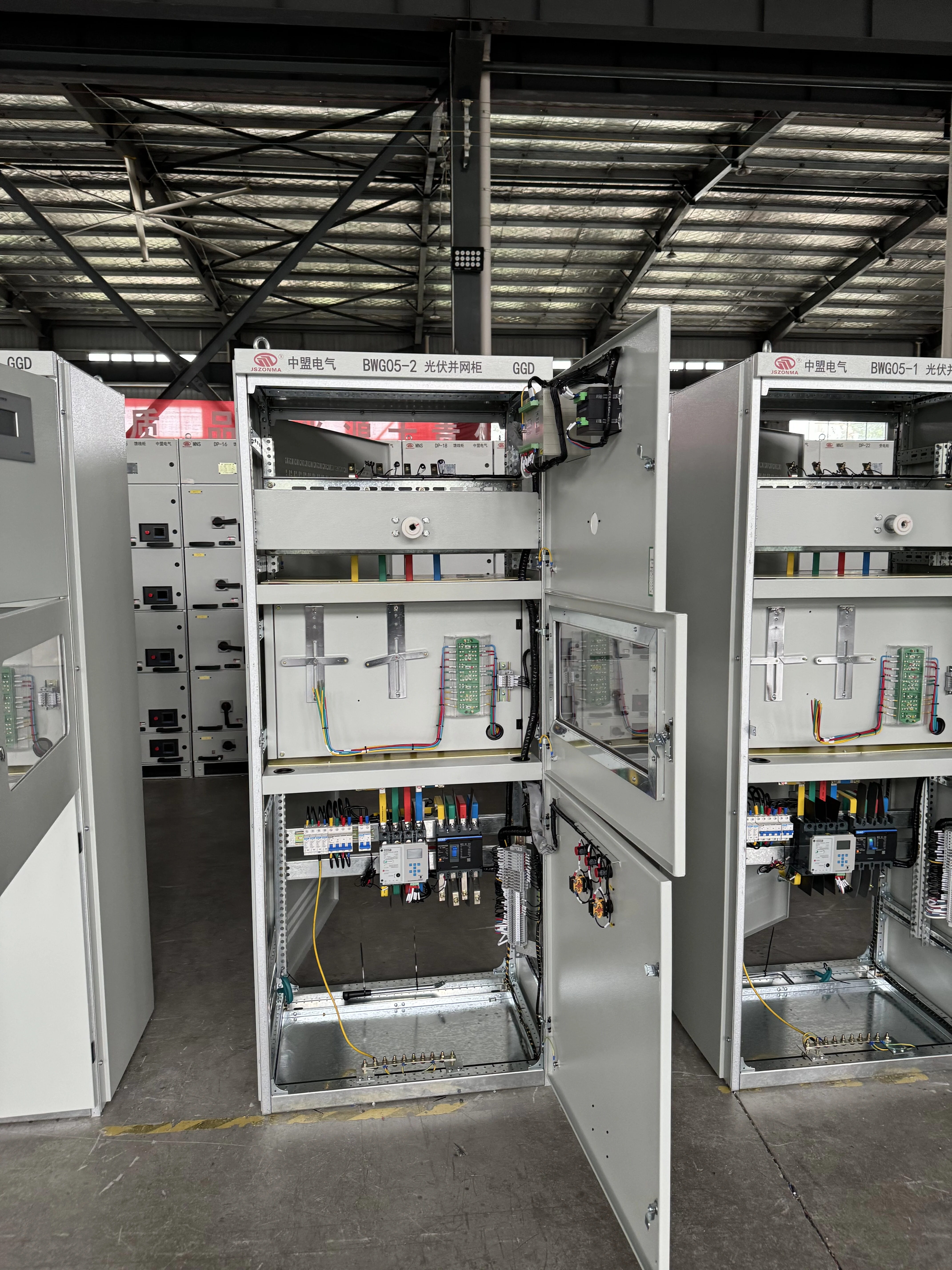

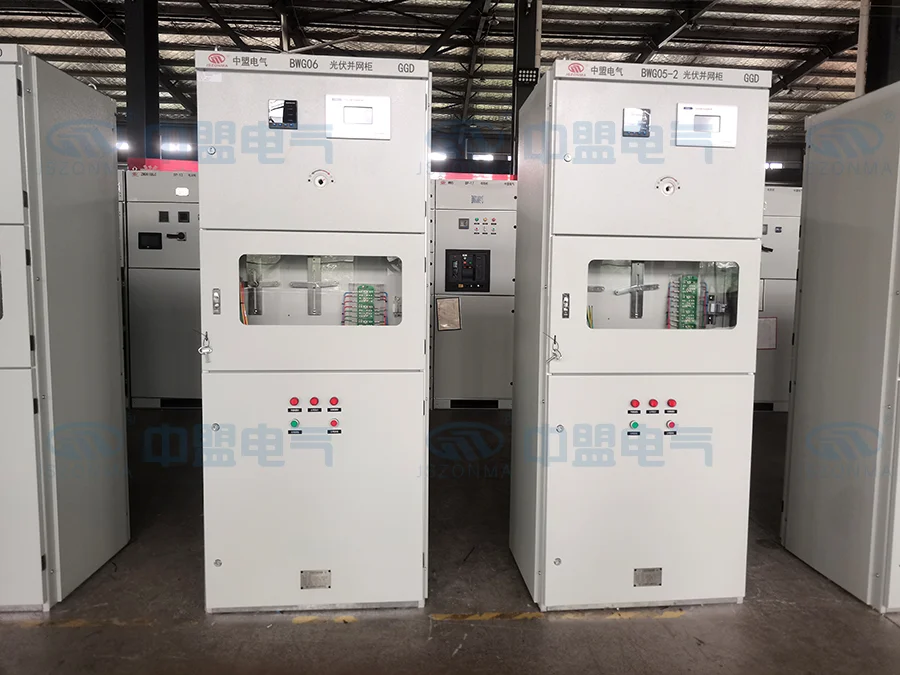

The low-voltage photovoltaic grid connected cabinet mainly consists of anti islanding protection devices (can also be equipped with fault disconnection devices, power quality online monitoring devices), isolation knife switches, grid connected circuit breakers, lightning arresters, temperature and humidity controllers, energy metering devices, and cabinets.

The selection of circuit breakers should be based on the actual current flowing through the circuit breaker, usually around 1.2 times the rated current. The cabinet type and cabinet size are customized to MNS according to the on-site situation, GCS, GCK, GGD.

Simultaneously equipped with intelligent communication function, it can communicate and network with the backend system, remotely operate the opening and closing of circuit breakers, and remotely view various electrical parameters and switch position information of the well network cabinet.

Typical Applications

• Distribution networks and utility substations
• Industrial plants, mining and infrastructure projects
• Solar PV, wind and battery energy-storage projects
• Commercial buildings, data centres and public facilities

Testing, Certification & Delivery

• Routine tests on every unit, with test records supplied.
• Type-test reports and qualification certificates available on request.
• Export packing, documentation and installation guidance for overseas projects.

FAQ

Can the ratings be customised?

Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.

What is the lead time?

Lead time depends on rating and quantity. Contact our sales team for the current production schedule.

Do you supply test reports?

Every unit ships with routine test records; type-test reports are available for the relevant series.

Request a Quote

Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
