Distrbuted photovoltaic low-voltage grid connected cabinet

Distrbuted photovoltaic low-voltage grid connected cabinet — Product Overview

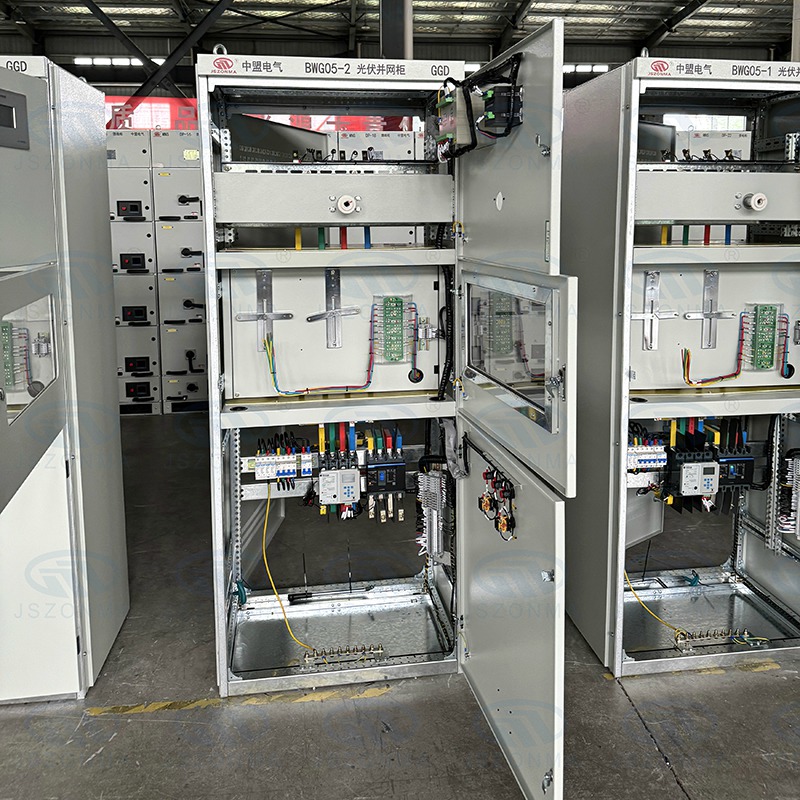

Distributed photovoltaic low-voltage grid connected cabinet is mainly used for distributed photovoltaic power generation projects in AC 400V low-voltage systems. The low-voltage photovoltaic grid connected cabinet mainly consists of anti islanding protection devices (can also be equipped with fault disconnection devices, online monitoring devices for power quality), isolation knife switches, grid disconnectors, lightning arresters, temperature and humidity controllers, energy metering devices, and cabinets. The cabinet type and cabinet size are customized according to the on-site situation as MNS, GCS, GCK, GGD, etc.

VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.

Typical Applications

• Distribution networks and utility substations
• Industrial plants, mining and infrastructure projects
• Solar PV, wind and battery energy-storage projects
• Commercial buildings, data centres and public facilities

Testing, Certification & Delivery

• Routine tests on every unit, with test records supplied.
• Type-test reports and qualification certificates available on request.

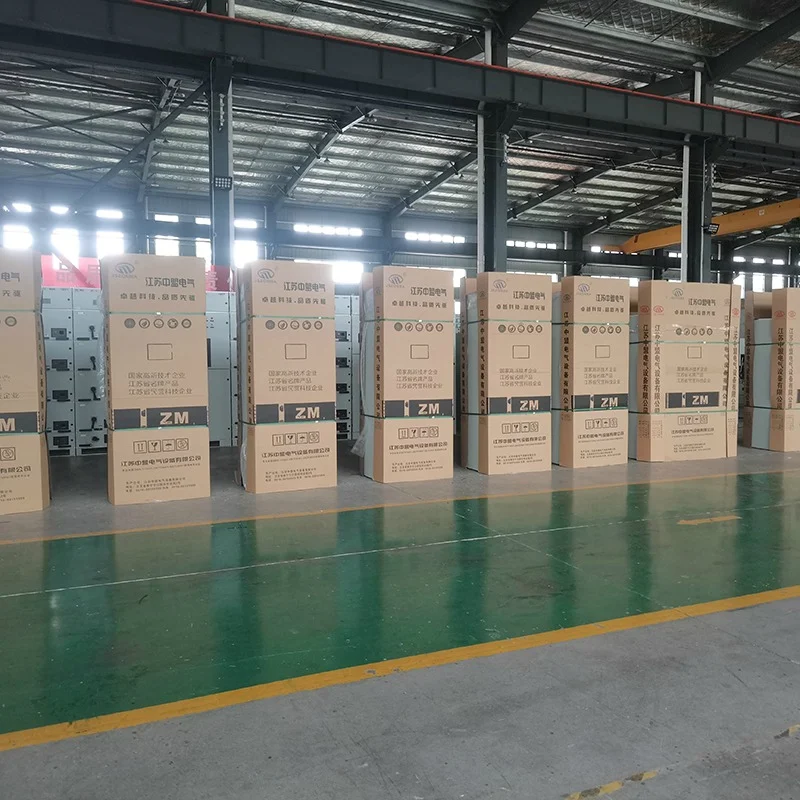

• Export packing, documentation and installation guidance for overseas projects.

FAQ

Can the ratings be customised?

Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.

What is the lead time?

Lead time depends on rating and quantity. Contact our sales team for the current production schedule.

Do you supply test reports?

Every unit ships with routine test records; type-test reports are available for the relevant series.

Request a Quote

Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
