YBMD-12/24 series buried box substations, — Product Overview

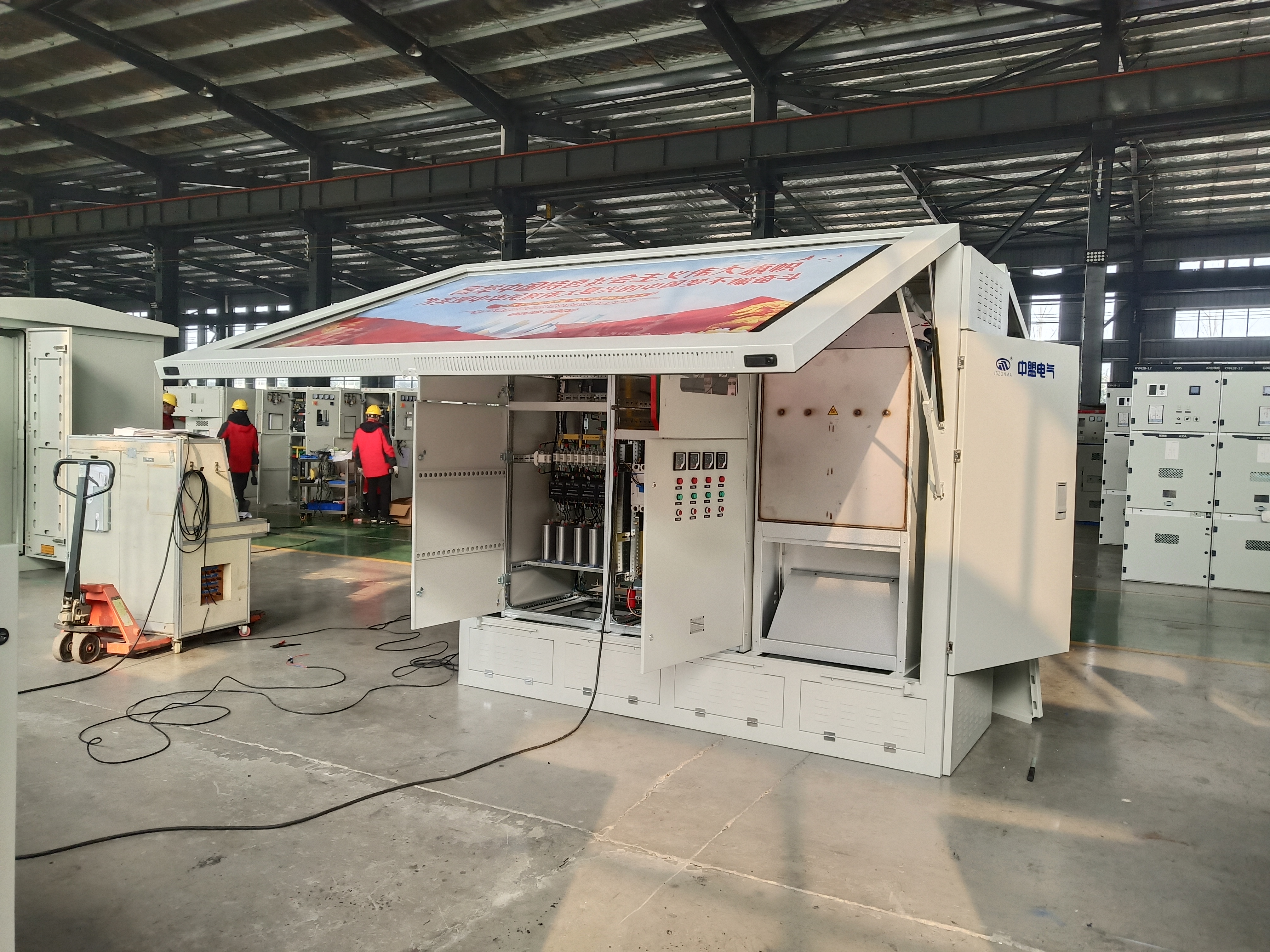

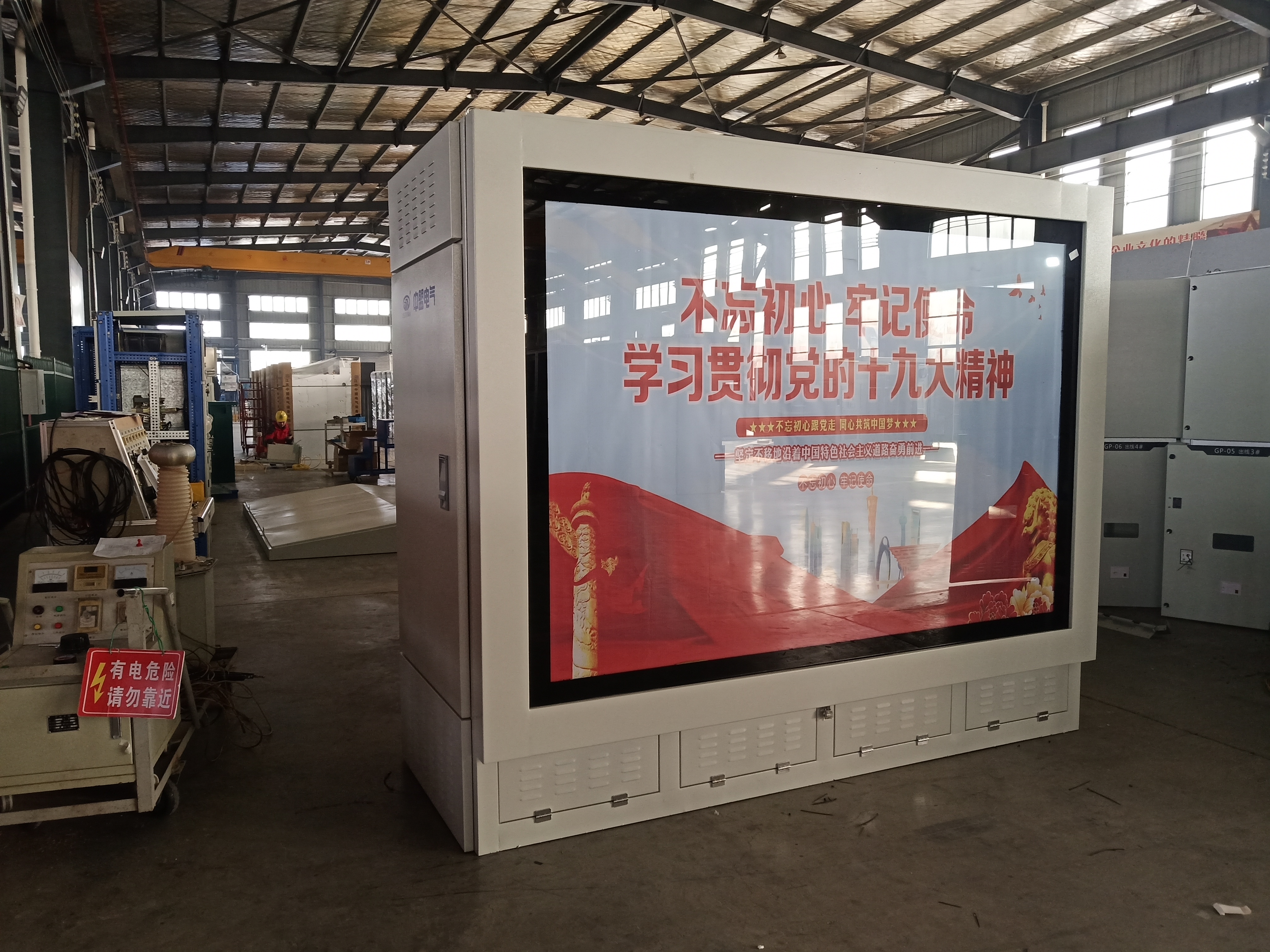

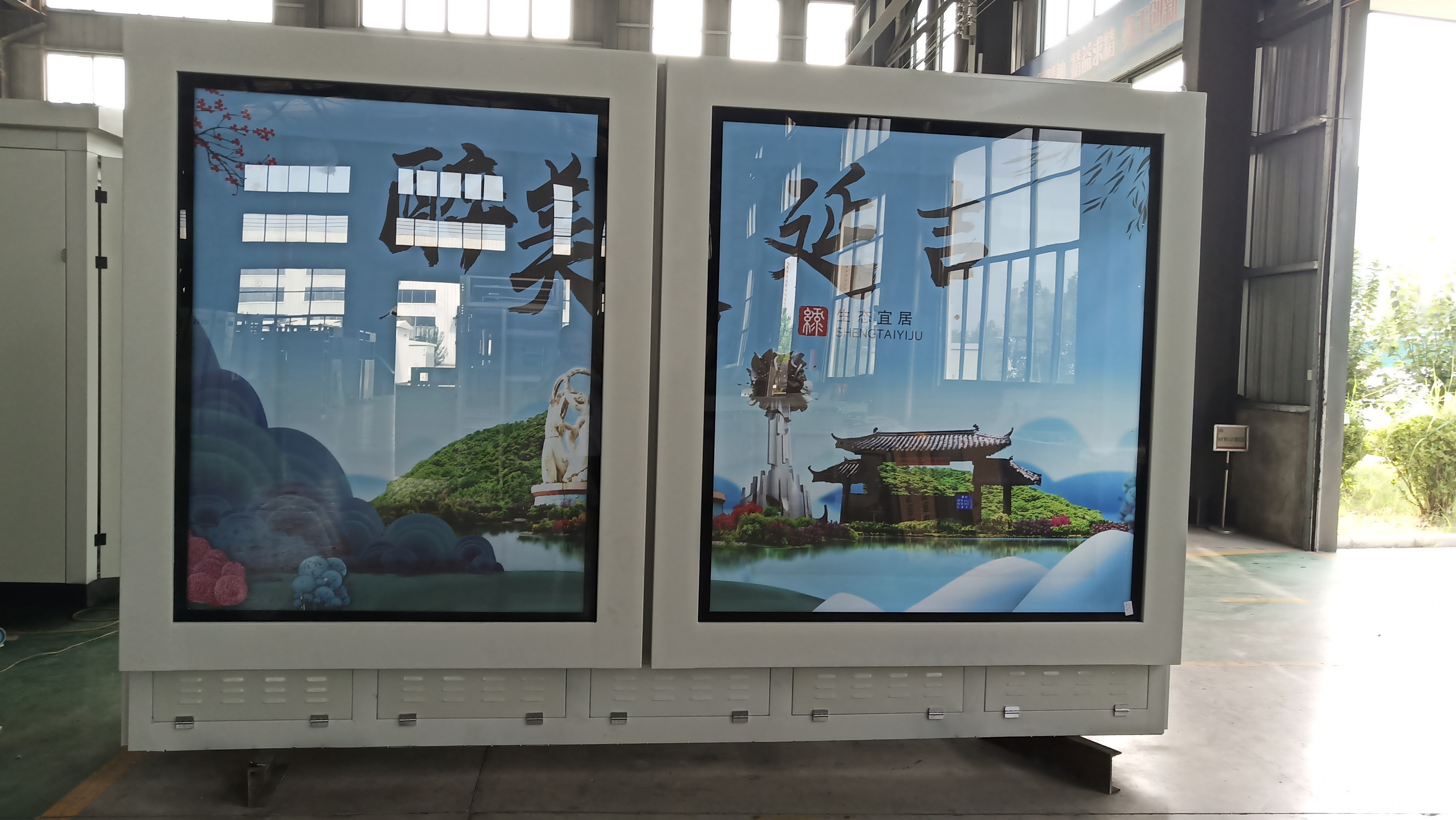

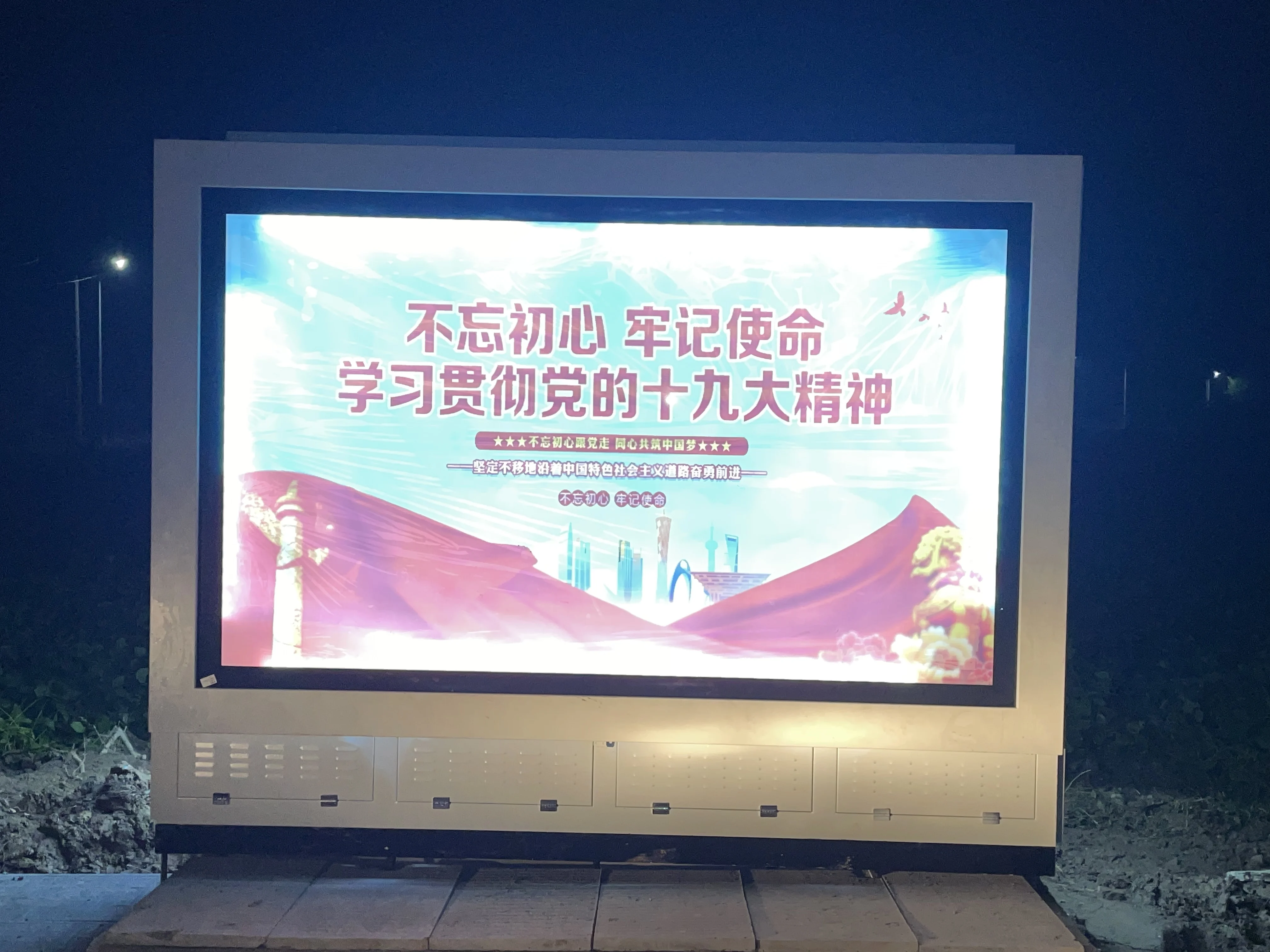

The YBMD-12/24 series buried box-type substation is designed and manufactured by VoltCloud Electric. The substation body is buried fully or partially underground — a landscape-type power supply facility developed for municipal construction. It resolves the conflict between scarce urban land and street-level clutter: small footprint, environmentally clean, low noise, low losses, and a visual appearance that integrates with the surrounding environment. It can also carry advertising or display functions.
VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.
Key Specifications
| Item | Value |
|---|---|
| Max monthly average temperature | +35 °C |
| Max yearly average temperature | +20 °C |
| Minimum ambient temperature | -15 °C |
| Relative humidity | max monthly average 90% (at 20 °C); max daily average 95% (at 20 °C) |
| Pollution degree | Class III |
| Protection degree | IP68 |
Need a rating that is not listed? Send us your duty sheet and we will confirm feasibility and lead time.
Features & Construction
- High-temperature resistant, corrosion-resistant and non-cracking.
- Fully sealed and fully insulated with excellent waterproof performance; the unit can be submerged in water for short periods.
- Protection degree reaches IP68, with a service life of more than 20 years.
Typical Applications
- Municipal streetscapes, squares and landscape areas
- Underground distribution in dense urban districts
- Public facilities where overhead or ground equipment is not acceptable
Testing, Certification & Delivery
- Routine tests on every unit, with test records supplied.
- Type-test reports and qualification certificates available on request.

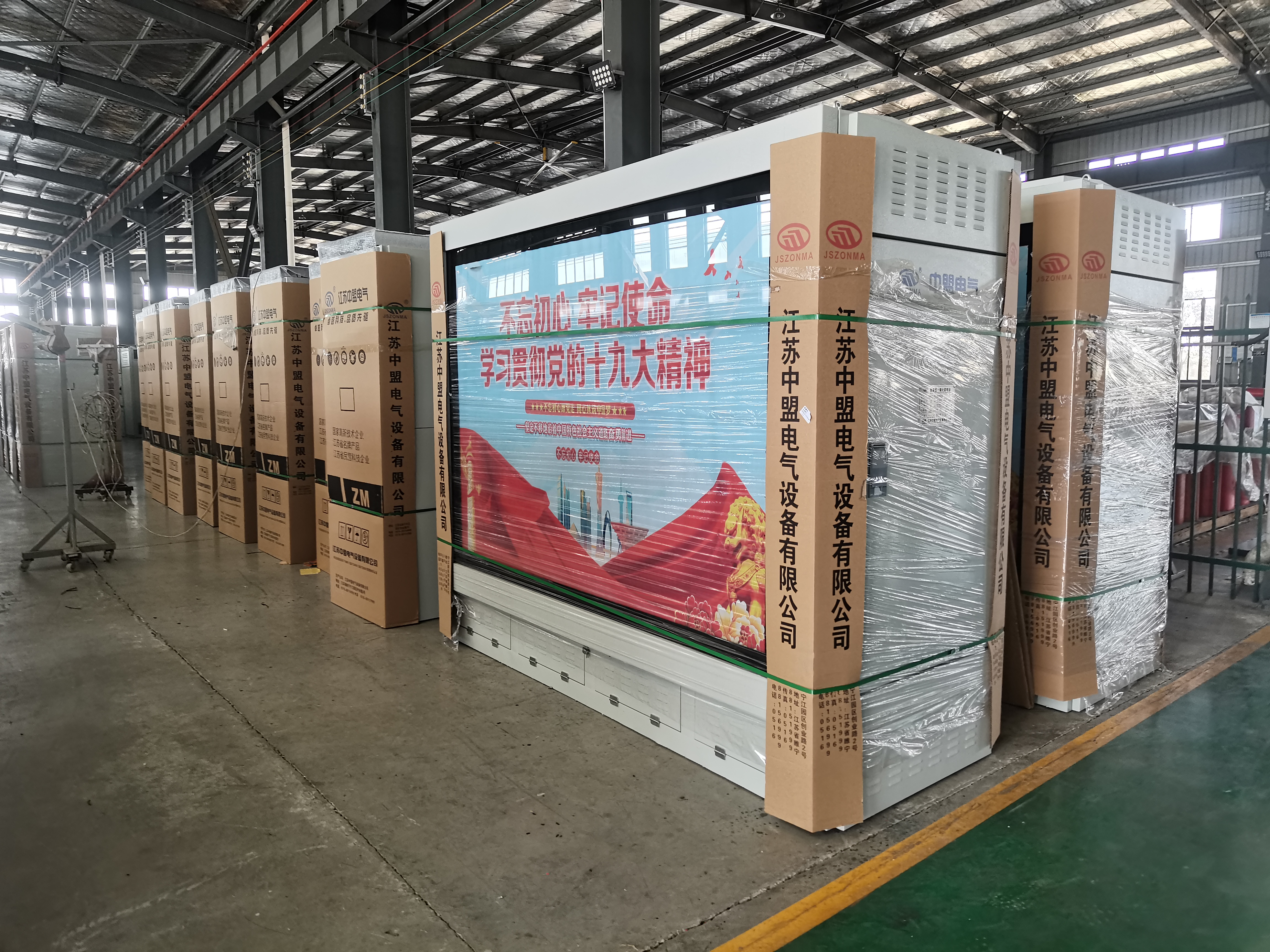

- Export packing, documentation and installation guidance for overseas projects.
FAQ
Can the ratings be customised?
Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.
What is the lead time?
Lead time depends on rating and quantity. Contact our sales team for the current production schedule.
Do you supply test reports?
Every unit ships with routine test records; type-test reports are available for the relevant series.
Request a Quote
Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
