ZMXB2 series of miniaturized intelligent prefabricated substations

ZMXB2 series of miniaturized intelligent prefabricated substations — Product Overview

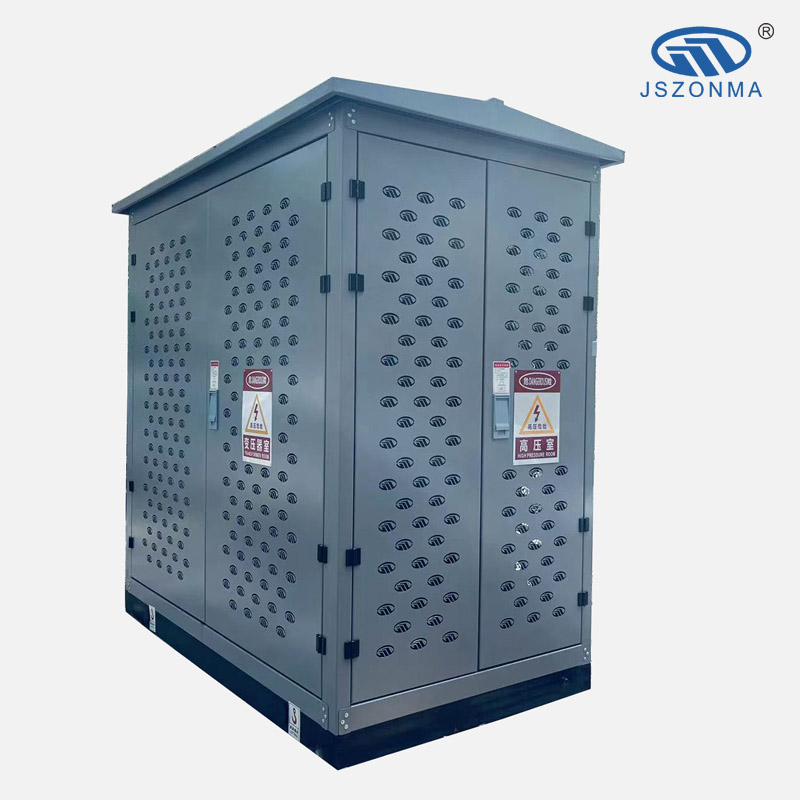

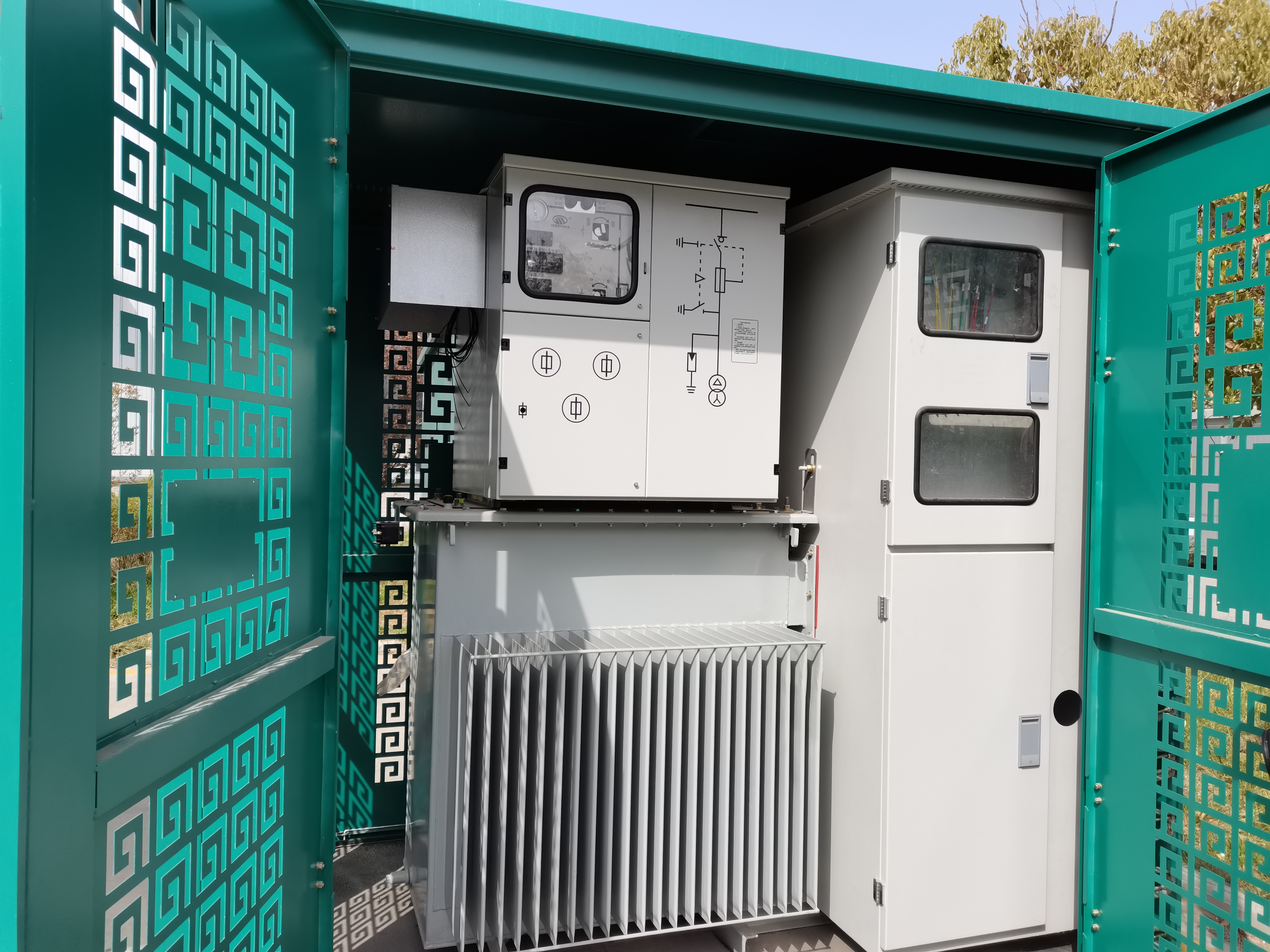

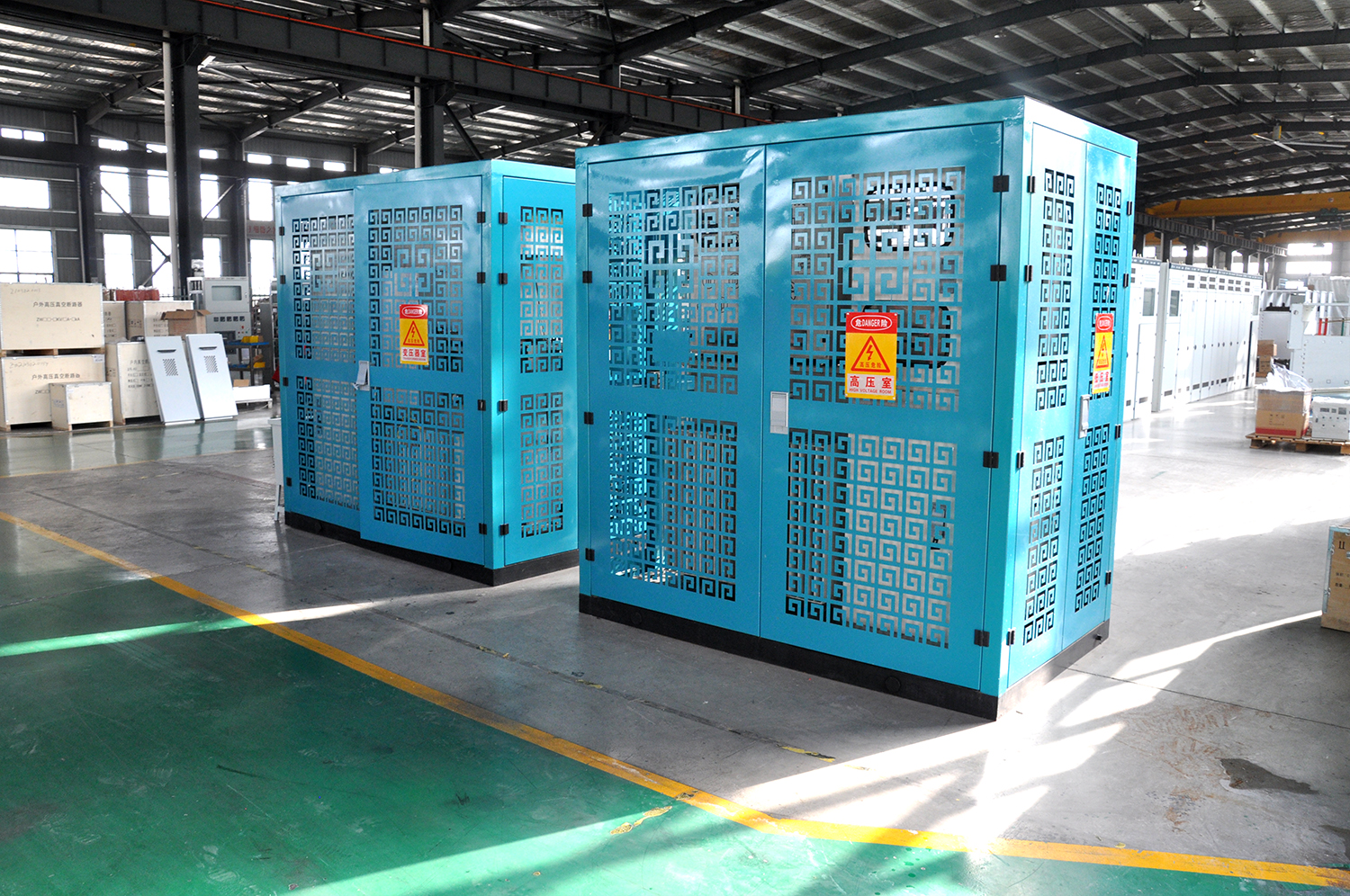

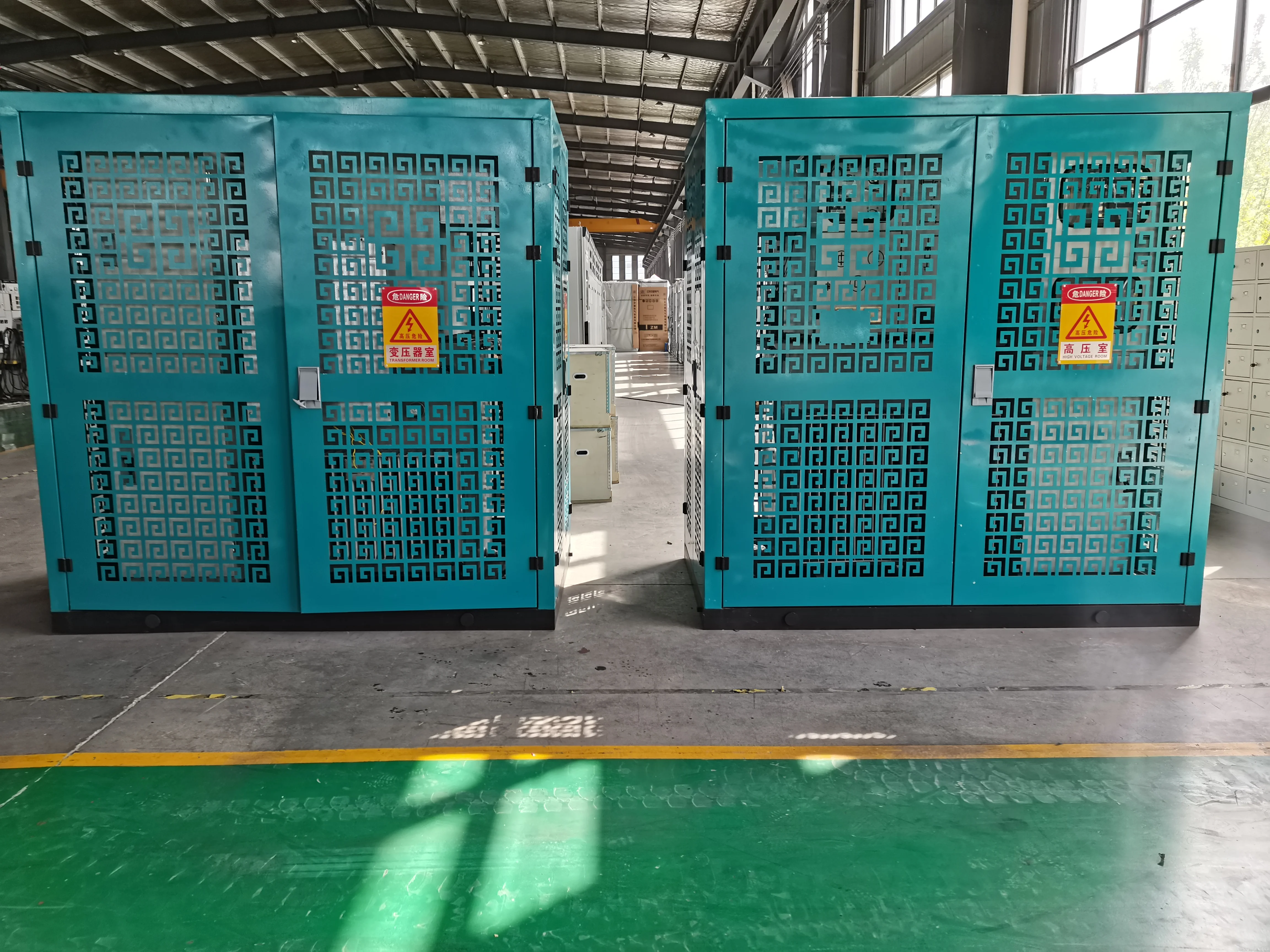

"> The ZMXB2 series of miniaturized intelligent prefabricated substations (hereinafter referred to as miniaturized box transformers) developed by our company have modular design, simple structure, minimal footprint, safety and reliability, no maintenance, low maintenance, compliance with environmental requirements, high degree of automation and standardization, and diverse appearance forms that can coordinate with the surrounding environment.

VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.

Features & Construction

• With the development of modern urban power grid, and the recommendation of the strategic goal of the State Grid Corporation of China to build a world energy Internet enterprise.
• The continuous increase in urban electricity consumption and the increasing scarcity of land resources have made the demand for miniaturization of distribution stations (rooms) and distribution equipment more urgent.

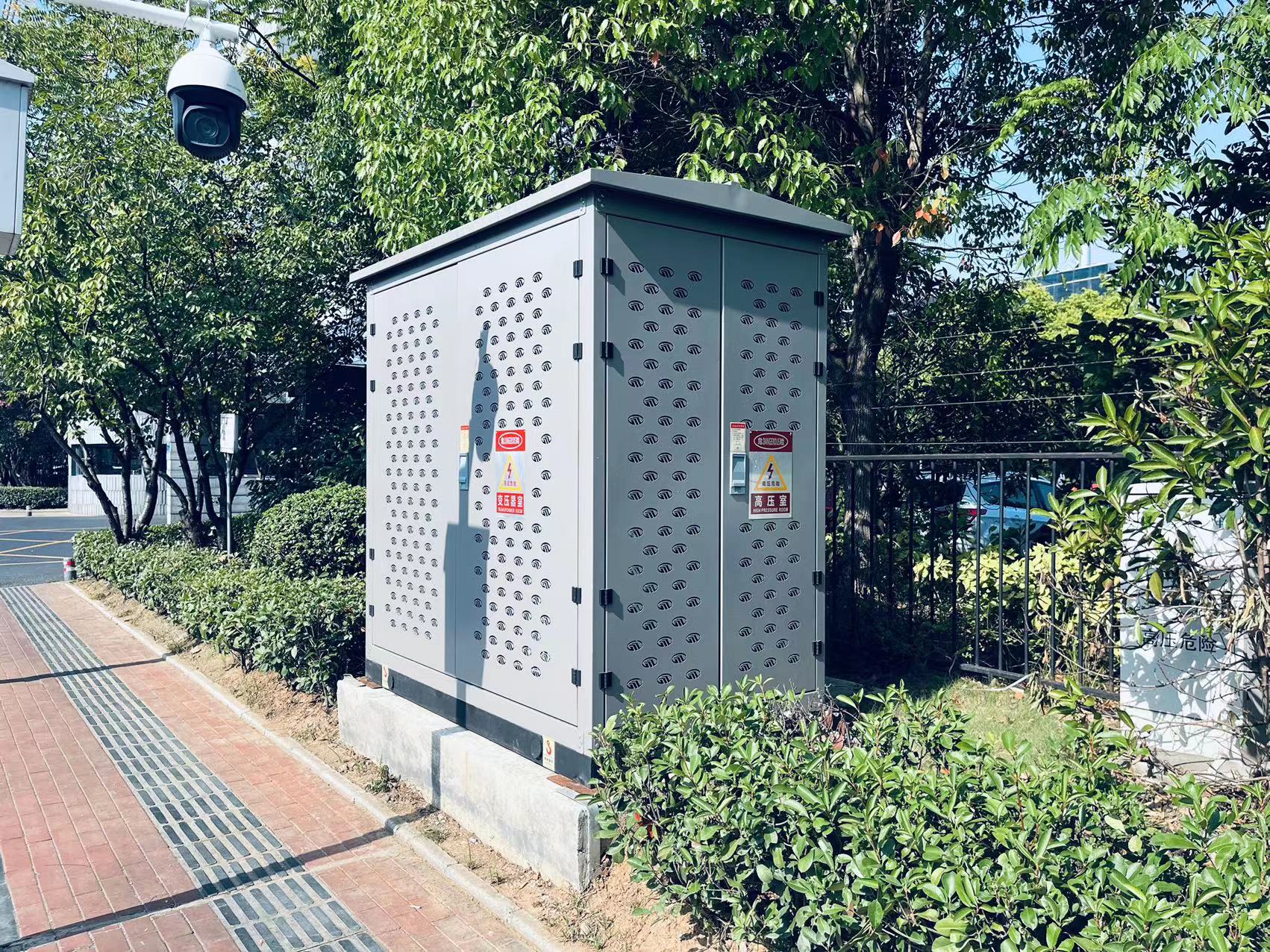

• Suitable for crowded roads and relatively narrow spaces in modern cities, and also in line with the standard requirements of State Grid Corporation of China’s distribution network automation.

Product Details

The typical design revision work of State Grid Corporation of China’s distribution network has added miniaturized switch station types, and after optimization, various types of switch stations can reduce the average land area by more than 60%.

Typical Applications

• Distribution networks and utility substations
• Industrial plants, mining and infrastructure projects
• Solar PV, wind and battery energy-storage projects
• Commercial buildings, data centres and public facilities

Testing, Certification & Delivery

• Routine tests on every unit, with test records supplied.
• Type-test reports and qualification certificates available on request.
• Export packing, documentation and installation guidance for overseas projects.

FAQ

Can the ratings be customised?

Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.

What is the lead time?

Lead time depends on rating and quantity. Contact our sales team for the current production schedule.

Do you supply test reports?

Every unit ships with routine test records; type-test reports are available for the relevant series.

Request a Quote

Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
