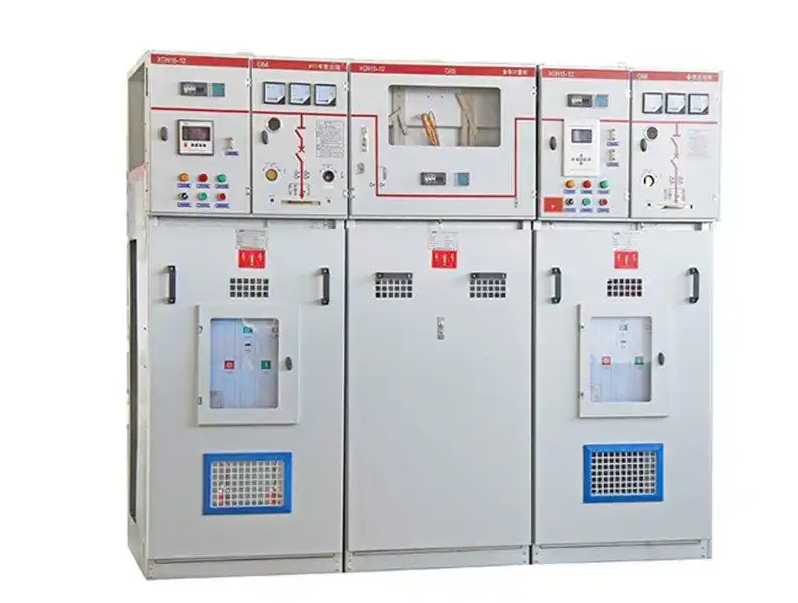

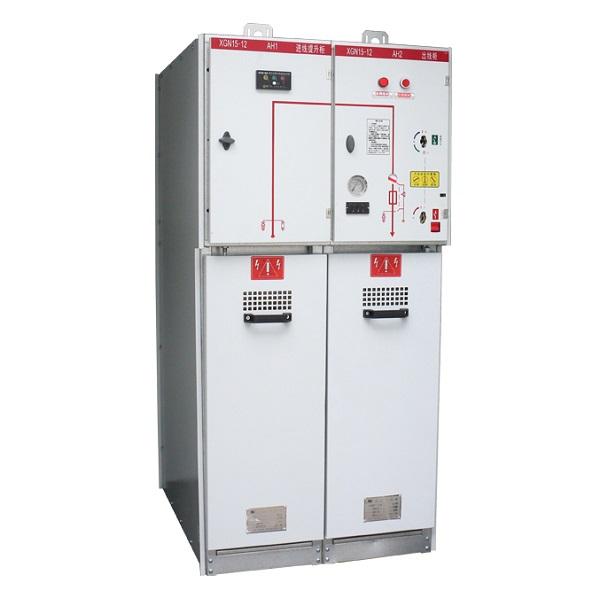

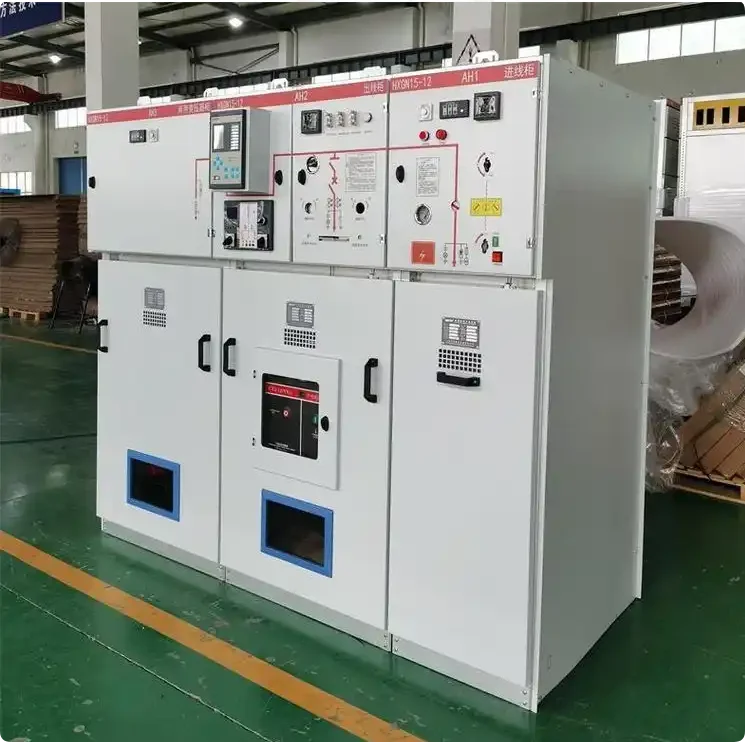

HXGN15-12 ring network switchgear

HXGN15-12 ring network switchgear — Product Overview

The HXGN15-12 modular AC metal enclosed switchgear is a new generation of high-voltage electrical product developed by VoltCloud Electric through the introduction of advanced foreign technology and self-designed according to the characteristics of domestic electricity demand.

VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.

Product Details

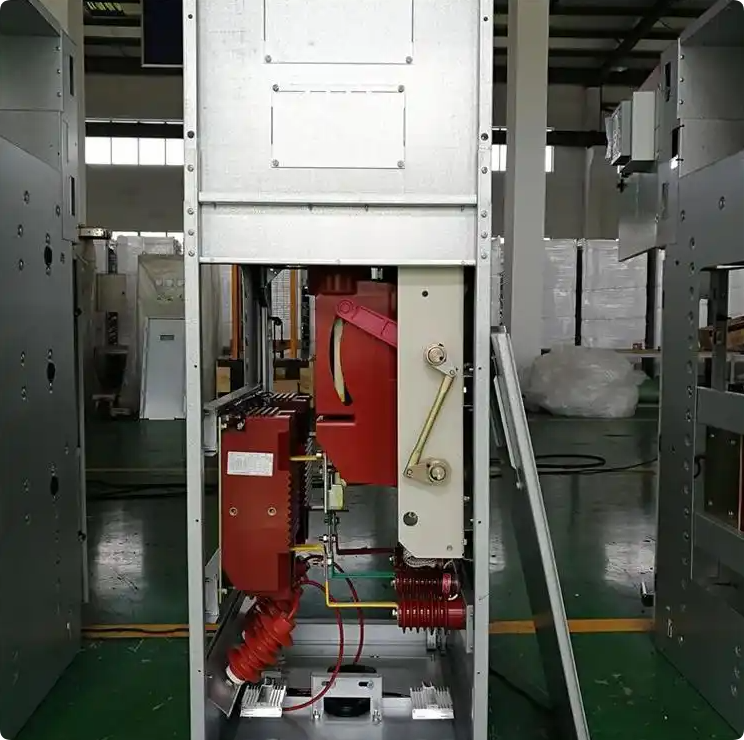

The main switch, operating mechanism, and components of the ring main unit adopt ABB’s original accessories or SFL-12/24 switchgear produced domestically assembled with imported components. ABB’s original HAD/US SF6 can be assembled according to user needs. Circuit breakers or VD4-S vacuum circuit breakers can be operated manually or electrically.

The cabinet body of the ring main unit is processed by CNC machine and riveted, with a protection level of IP3X and reliable mechanical interlocking and anti misoperation. This cabinet has the characteristics of small size, light weight, beautiful appearance, and simple operation.

Typical Applications

• Distribution networks and utility substations
• Industrial plants, mining and infrastructure projects
• Solar PV, wind and battery energy-storage projects
• Commercial buildings, data centres and public facilities

Testing, Certification & Delivery

• Routine tests on every unit, with test records supplied.
• Type-test reports and qualification certificates available on request.
• Export packing, documentation and installation guidance for overseas projects.

FAQ

Can the ratings be customised?

Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.

What is the lead time?

Lead time depends on rating and quantity. Contact our sales team for the current production schedule.

Do you supply test reports?

Every unit ships with routine test records; type-test reports are available for the relevant series.

Request a Quote

Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
