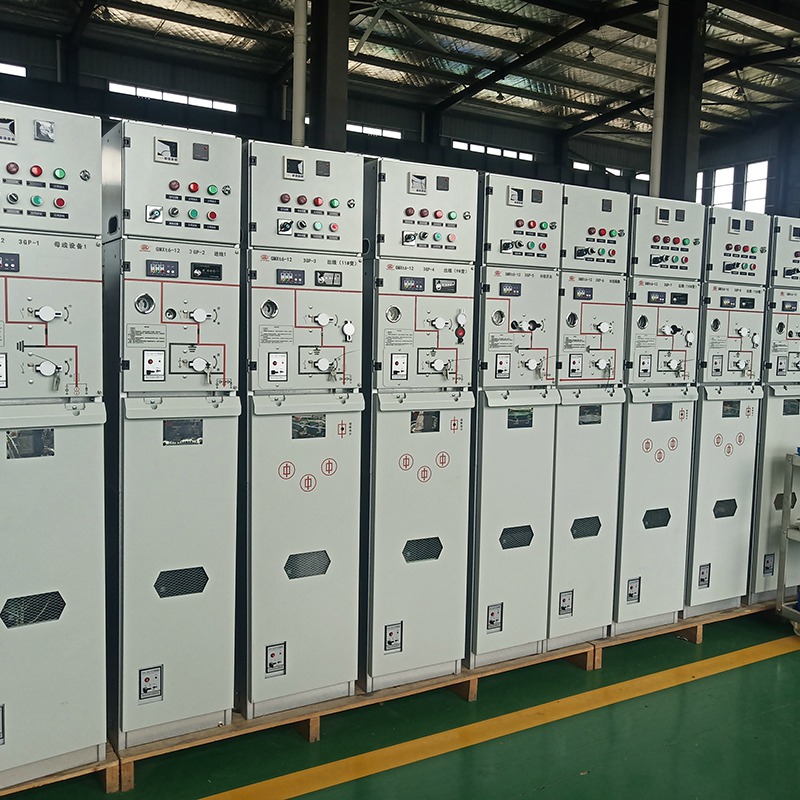

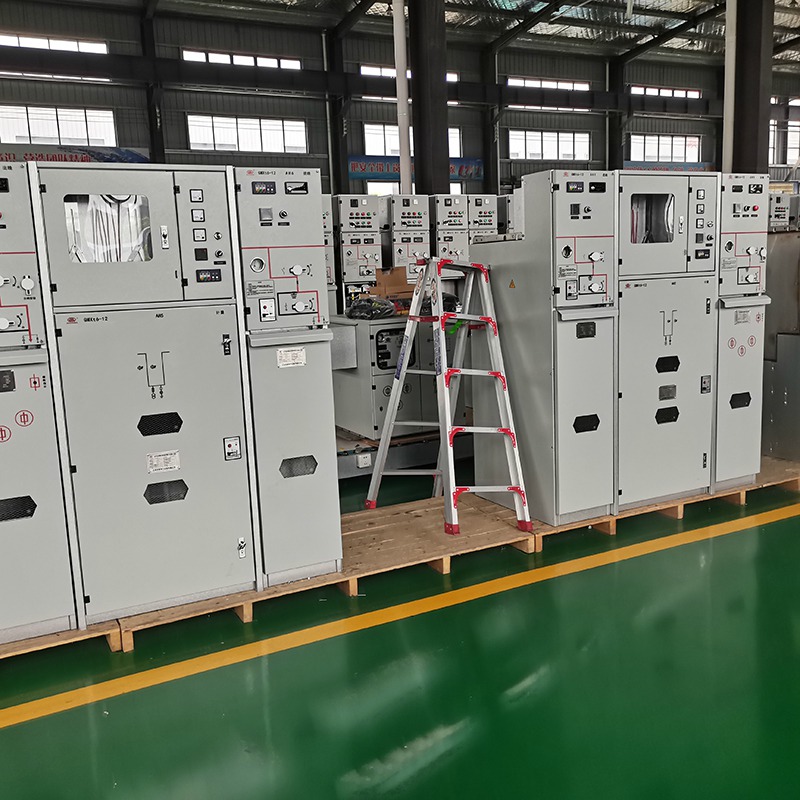

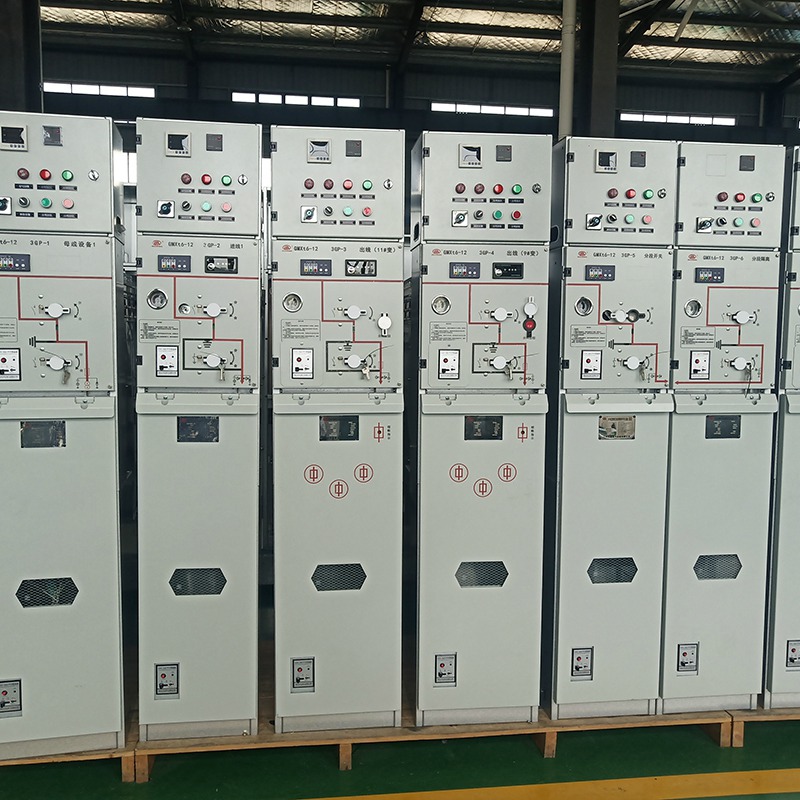

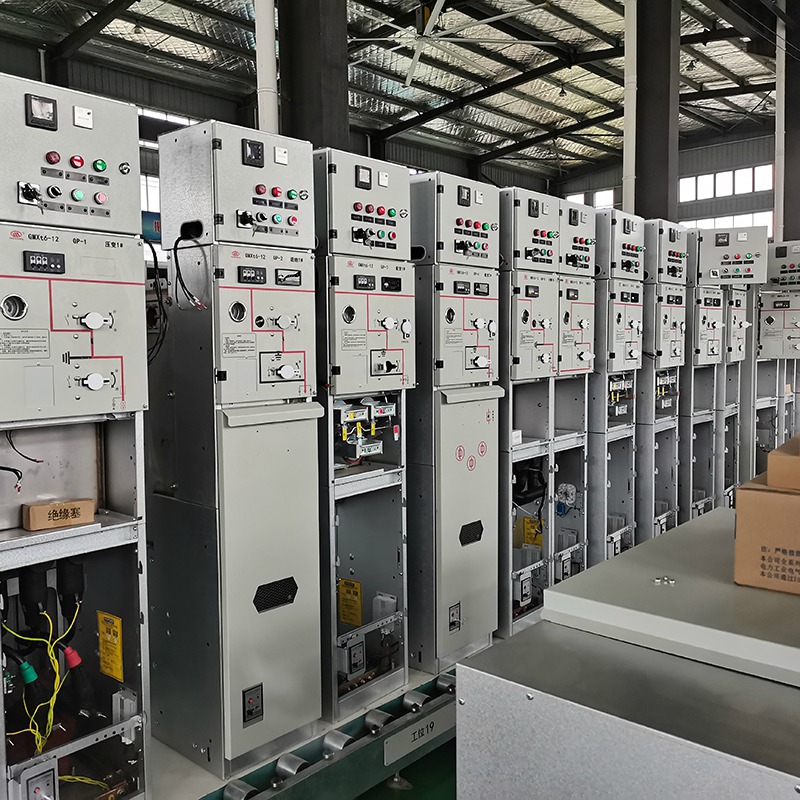

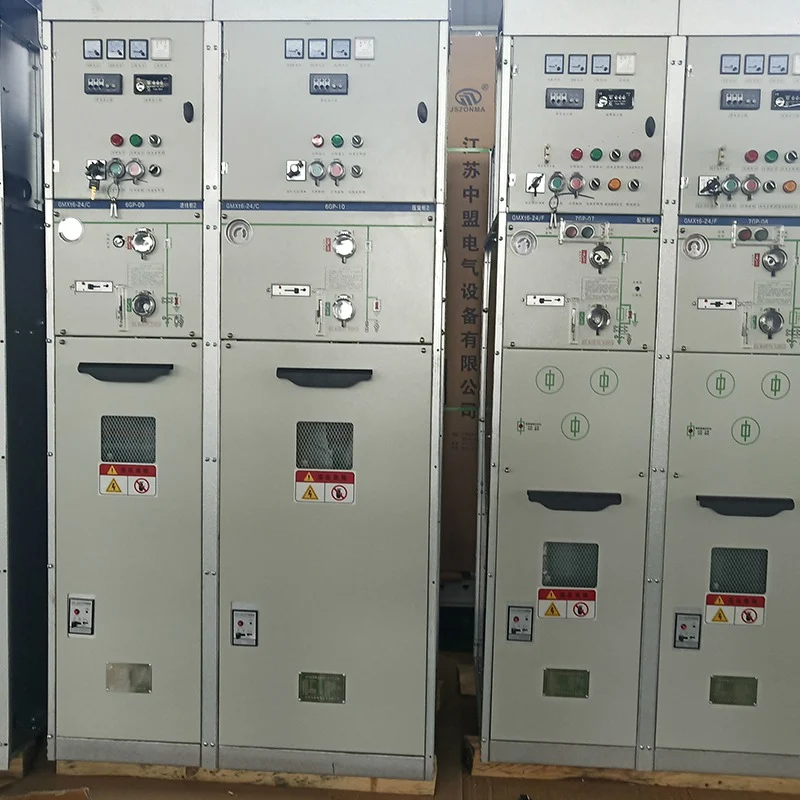

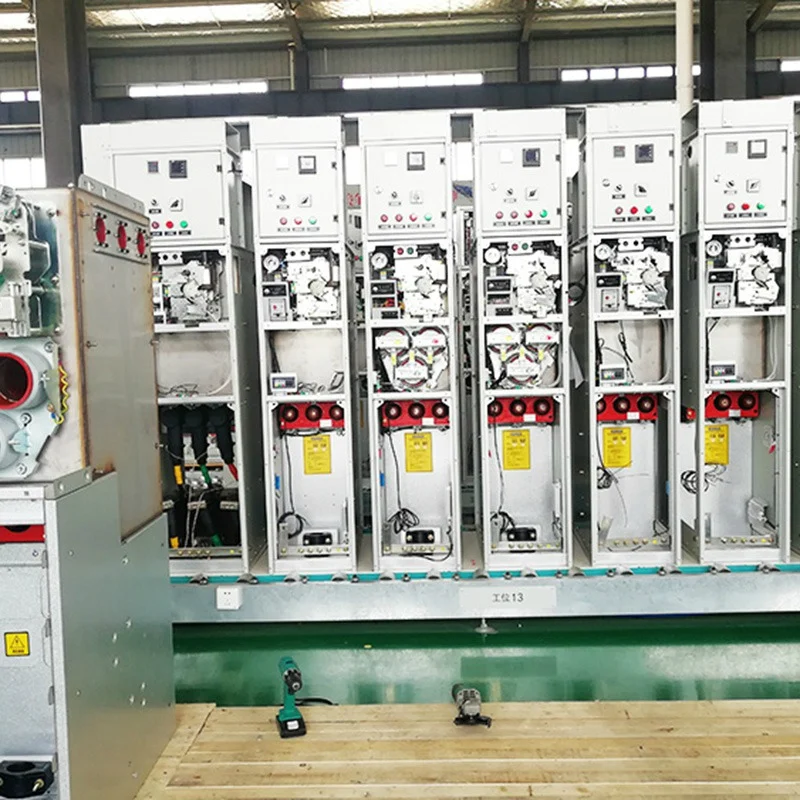

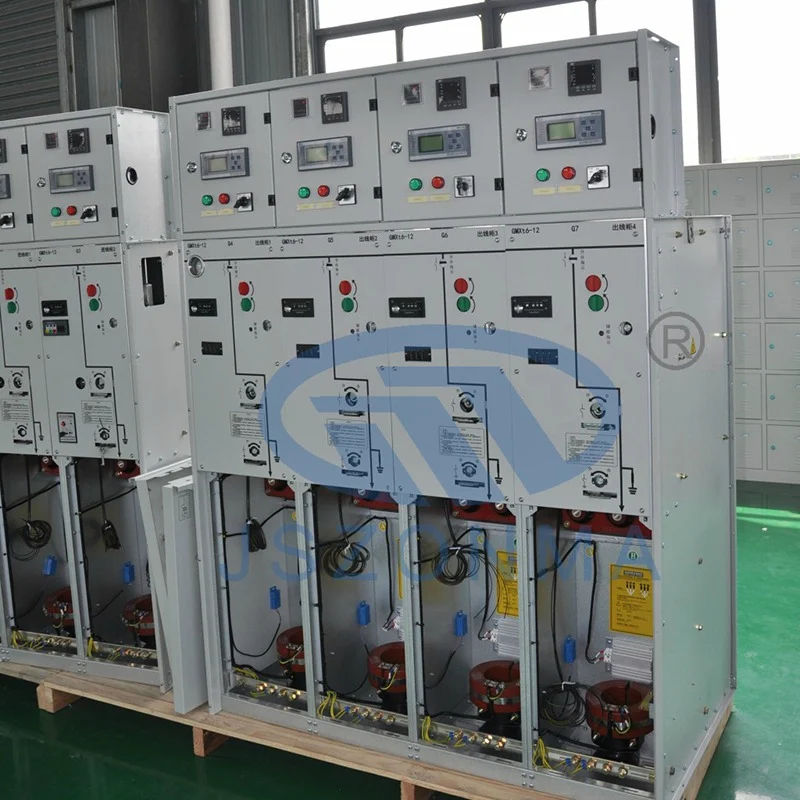

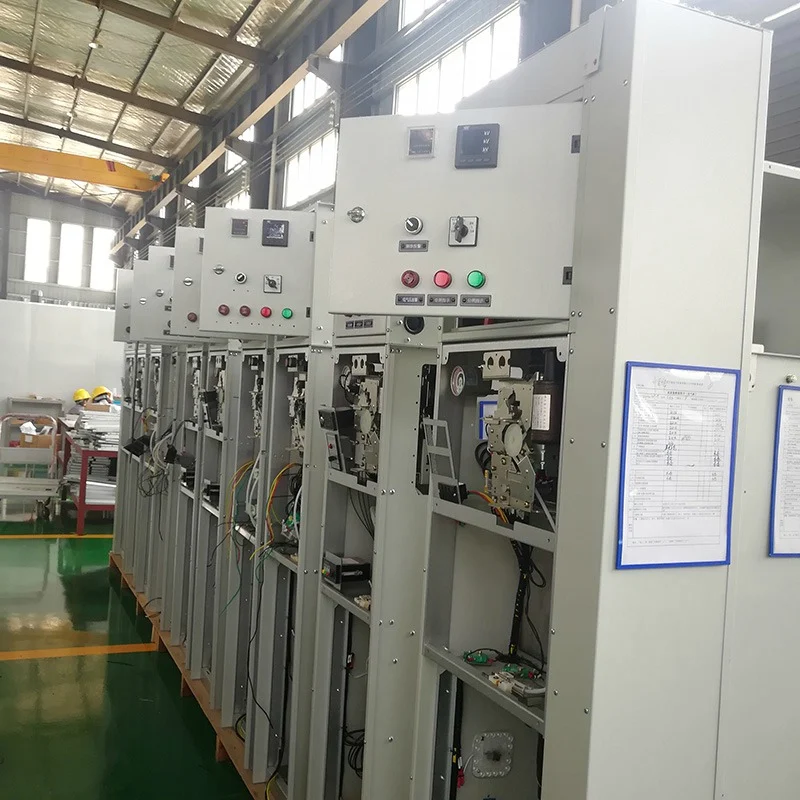

GMXT6 Full insulated compact gas ring main unit — Product Overview

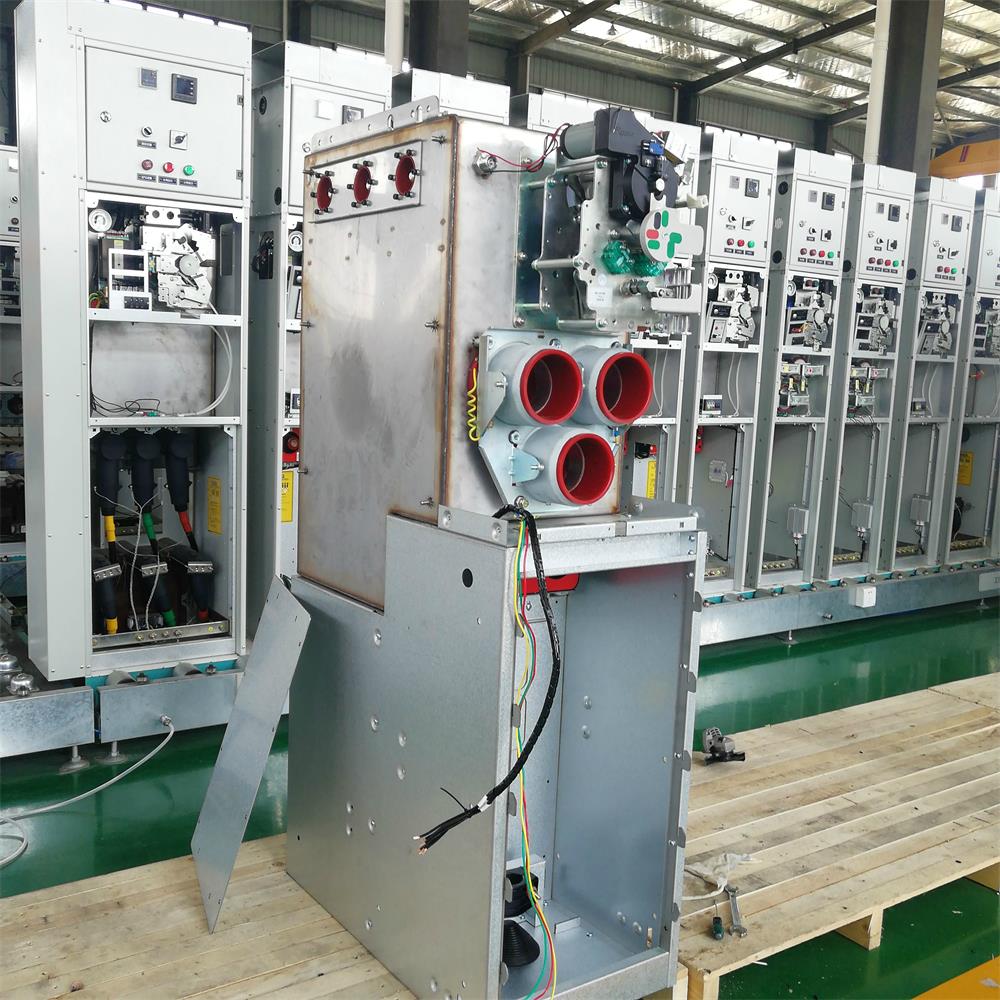

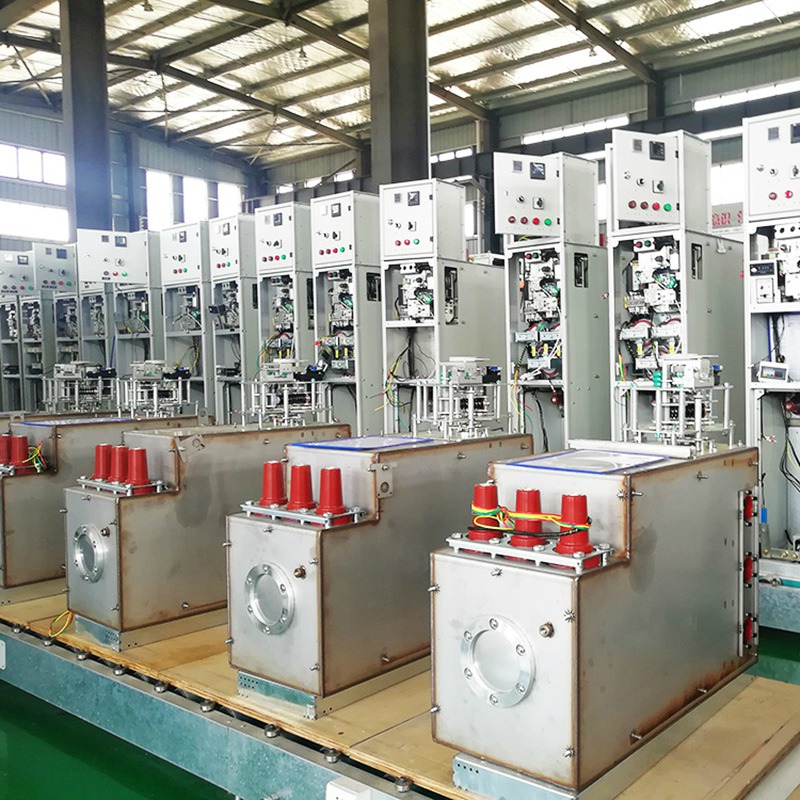

The GMXt6 fully insulated gas filling cabinet is a completely sealed system, with all live parts and switches enclosed in a stainless steel casing. The entire switch device is not affected by external environmental conditions, ensuring operational reliability and personal safety, and achieving maintenance free operation.
VoltCloud Electric engineers and manufactures this equipment for utility, industrial and renewable-energy projects. Every unit is routine-tested before shipment and delivered with test records and export documentation. Ratings shown below are from our current production data — non-standard capacities, voltage ratios and loss classes are engineered to order.
Key Specifications
| Item | Value |
|---|---|
| Protection degree | IP67 |
Need a rating that is not listed? Send us your duty sheet and we will confirm feasibility and lead time.
Features & Construction
- GMXt6-12 fully insulated inflatable cabinet complies with GB standards.
- The design lifespan for operation under indoor conditions (40 ℃) and outdoor conditions (-50 ℃) exceeds 30 years.
- The switchgear has a complete “five prevention” interlocking device, which completely eliminates personnel and equipment operation failures that may be caused by human error.
- All switch cabinets have reliable safety relief channels, which can ensure the personal safety of operators even in extreme situations.
- Switchgear is divided into two types: fixed unit combinations and expandable unit combinations.
- Switchgear usually has front incoming and outgoing lines, and can also be installed in different positions to achieve side outgoing lines or side extensions.
- The cabinet size is easy to install and can be suitable for places with limited space and poor environmental conditions.
Product Details
By selecting expandable busbars, any combination can be achieved to achieve full modularity. The expansion of busbar safety insulation and shielding ensures high reliability and safety. The GMXt6-12 inflatable switchgear can also provide a TV based automation solution, forming the concept of intelligent switches and reducing on-site installation and debugging workload to a very low level.
The GMXt6-12 fully insulated inflatable cabinet is divided into non expandable standard configuration and expandable standard configuration. Due to its combination of full modules and half modules, as well as its own scalability, it has extremely special flexibility.
(1) GMXt6-12 fully insulated inflatable cabinet uses CO2, ammonia, dry air, and SF6 gas as arc extinguishing and insulation media
Typical Applications
- Distribution networks and utility substations
- Industrial plants, mining and infrastructure projects
- Solar PV, wind and battery energy-storage projects
- Commercial buildings, data centres and public facilities
Testing, Certification & Delivery
- Routine tests on every unit, with test records supplied.
- Type-test reports and qualification certificates available on request.
- Export packing, documentation and installation guidance for overseas projects.
FAQ
Can the ratings be customised?
Yes. Capacity, voltage ratio, vector group, loss class and enclosure protection are engineered to your specification — share your duty sheet for a matched proposal.
What is the lead time?
Lead time depends on rating and quantity. Contact our sales team for the current production schedule.
Do you supply test reports?
Every unit ships with routine test records; type-test reports are available for the relevant series.
Request a Quote
Send us the capacity, primary/secondary voltage, vector group, applicable standards and destination market. Request a quote → or browse the full product range.
