What Is Chinese-Style Prefabricated Box Substation?

Chinese-style box substation, also shorted as Chinese-type transformer, is a localized prefabricated substation. It differs from American-style and European-style box transformers.

It draws strengths from two mainstream box substation types. It adopts the miniaturized layout of American box transformers. Furthermore, it inherits the automatic configuration advantages of European box substations. This creates a unique independent structure. It delivers safe, reliable, convenient and eco-friendly performance, widely used for wind and photovoltaic power stations.

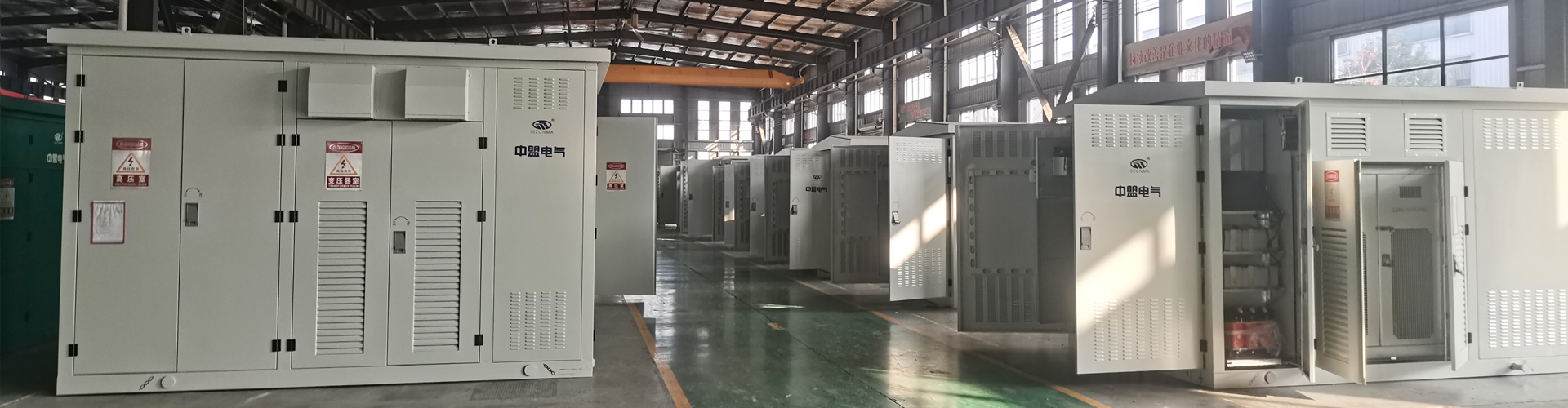

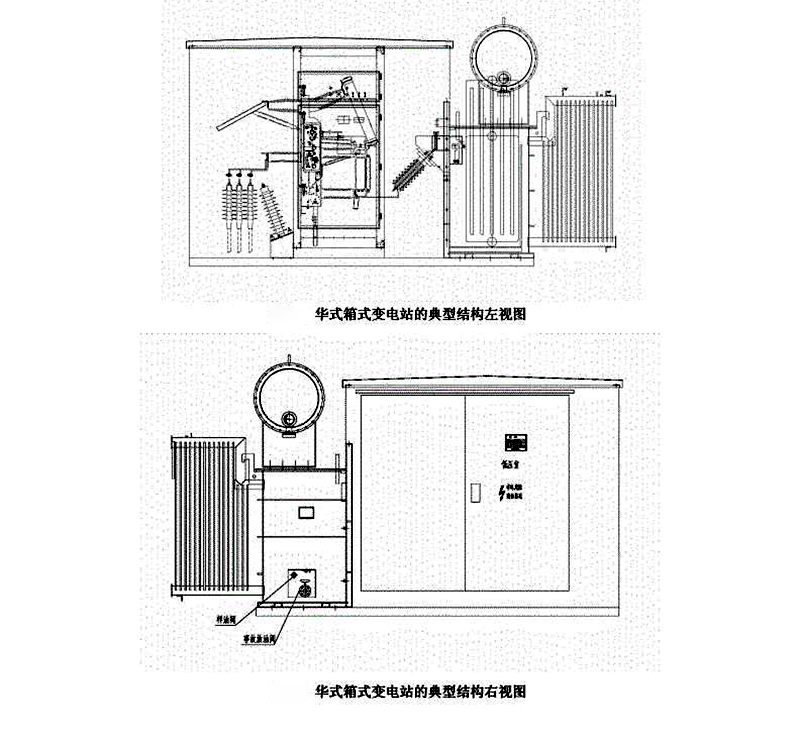

Basic Structure & Core Features

1. Small Floor Space & Lower Investment

Different from European box substation, Chinese-style box substation cancels independent transformer room. Its overall footprint is much smaller.

It adopts the inlet and outlet wiring structure of American transformer. This design saves a large amount of copper materials. Its total equipment cost is lower than European box substation, cutting customers’ investment costs.

2. Safer Operation with Busbar Connection

Busbars are adopted to connect high voltage switches and transformers. This structure effectively eliminates hidden safety risks caused by cable connection during long-term operation.

3. Split Independent Chamber Design

The isolating knife, arc extinguishing chamber and fuse of high voltage switch are placed in separate chambers.

When replacing fuses or arc extinguishing parts, there is no need to cut off power of the whole circuit. Single-unit maintenance will not affect the normal operation of other wind turbines.

4. Open Radiator for Full Natural Cooling

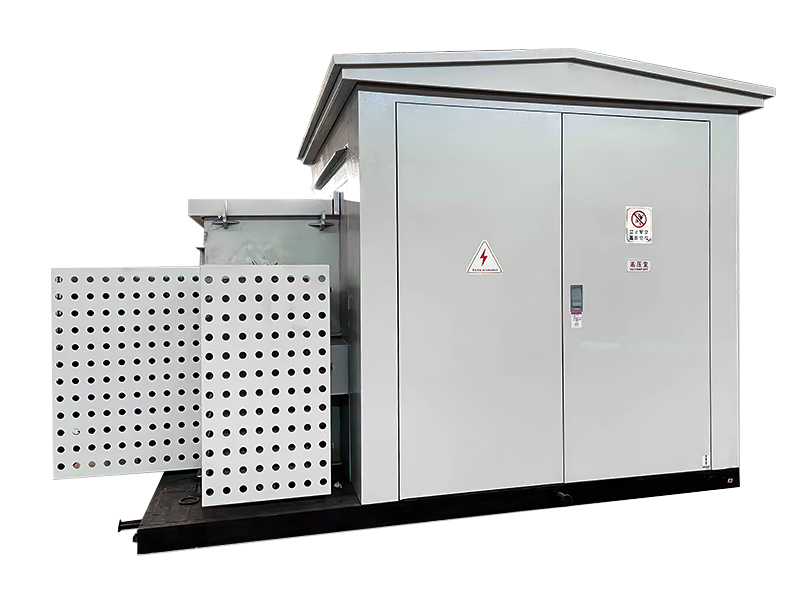

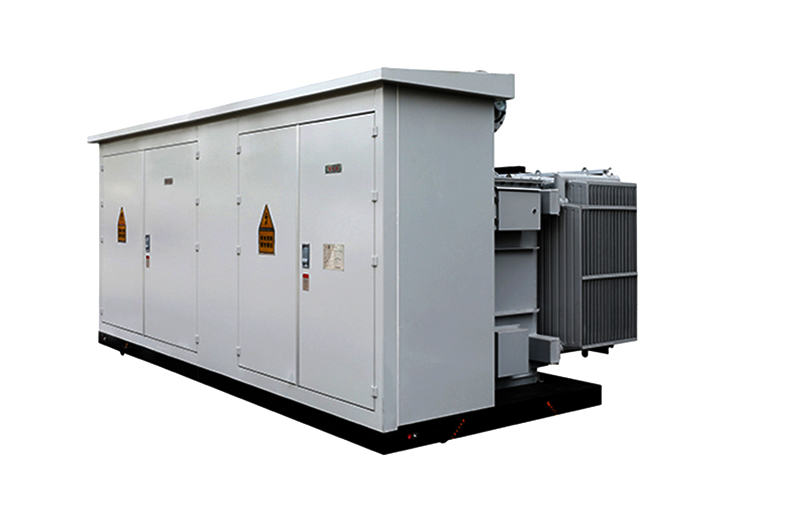

Drawing on the strengths of American box transformers, the radiator of the oil-immersed transformer is installed in an open layout. It achieves full natural ventilation.

This design reduces power consumption from cooling fans. It also avoids over-temperature tripping failures caused by unreliable forced air cooling fans. All live components are fully sealed inside the cabinet, realizing good dustproof performance.

Unique Advantages of Chinese-Style Box Substation

1. Compact and miniaturized layout. For the same capacity, its floor space only accounts for 58% of European box substation.
2. The main heat source — oil-immersed transformer is placed outside the metal cabinet. Other electrical components are sealed in IP54 metal enclosure. It reduces extra cooling equipment and lowers costs.
3. Three optional high-voltage solutions: vacuum load switch-fuse combination, vacuum circuit breaker, C-GIS.
4. Equipped with gas relay to realize light gas alarm and heavy gas trip protection for system safety.
5. Fully sealed structure with rainproof, sand-proof and anti-corrosion performance, suitable for long-term outdoor operation.
6. Full intelligent design. Integrated microcomputer automation protection device supports four remote functions: remote measurement, remote signaling, remote control, remote regulation.
7. Custom non-standard design available for all capacities as required by design institutes, helping clients save project investment.
8. Adaptable to high altitude environments up to 3500 meters above sea level.

Main Application Scenarios

• Onshore & offshore wind power farms
• Distributed ground photovoltaic power stations
• Centralized large-scale solar energy bases
• New energy grid connection supporting projects

Why Choose Zhongmeng Chinese-Style Box Substation?

We optimize every structural detail for wind and photovoltaic power scenarios. Our products balance small size, low cost and stable performance. Customization service is supported to match various new energy project standards around the world.
