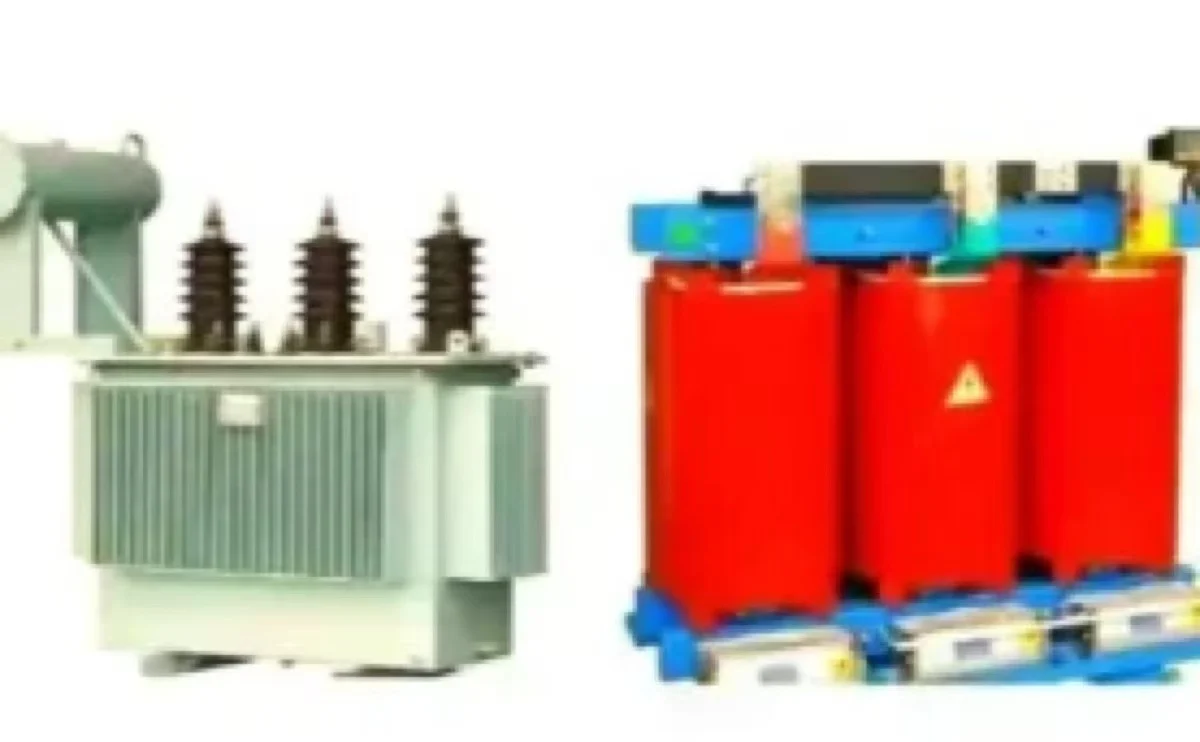

1. Core Differences: Dry-Type vs Oil-Immersed Transformers

Cooling & Insulation Systems

• Dry-type transformers use air cooling with epoxy resin insulation
• Oil-immersed transformers rely on mineral/synthetic oil for cooling and insulation

Fire Safety Ratings

• Dry-type advantages:
  • No flammable liquids (NFPA 70 compliant)
  • Ideal for indoor installations (hospitals, data centers)
• Oil-filled risks:
  • Fire hazard (requires containment systems)
  • Not recommended for occupied buildings

2. Cost Comparison: Initial Price vs Lifetime Value

3. Efficiency & Performance Benchmarks

Energy Loss Comparison

• No-load losses:
  • Dry-type: 1.5-2% higher
  • Oil-immersed: More efficient at standby
• Load losses:
  • Oil-immersed wins for continuous operation
  • Dry-type better for intermittent use

Capacity Limits

• Dry-type max: Typically ≤10MVA
• Oil-immersed max: Up to 300MVA+ for utility-scale

4. Best Applications for Each Type

When to Choose Dry-Type Transformers

✔ Commercial buildings (malls, offices)
✔ Data centers (no oil contamination risk)
✔ Urban areas with strict fire codes
✔ Short-term overload applications

When Oil-Immersed is Better

✔ Utility substations
✔ Industrial plants (steel mills, refineries)
✔ Renewable energy projects
✔ High-capacity requirements (>5MVA)

5. Maintenance Requirements Compared

Dry-Type Maintenance

• Annual thermal imaging scans
• Dust cleaning every 2-3 years
• Insulation resistance testing

Oil-Immersed Maintenance

• Quarterly oil testing (DGA, moisture)
• Bushing inspections
• 5-8 year oil changes

Critical Fact: Oil testing costs $300-500/sample – factor this into TCO.

6. Environmental Considerations

2024 Update: New ester oil options reduce environmental impact by 40%.

7. Decision Flowchart

8. 2024 Market Trends

• Smart dry-types now feature:
  • IoT temperature monitoring
  • Predictive failure alerts
• Oil-immersed innovations:
  • Biodegradable fluids
  • Self-healing insulation

Key Takeaways for Buyers

1. Safety-critical sites → Always choose dry-type
2. Large industrial loads → Oil-immersed more cost-effective
3. Total cost matters – Calculate 10-year TCO, not just purchase price
