White Paper on Comprehensive Noise Control Technologies for Dry-Type Transformers

Benefits of Noise Reduction for Dry-Type Transformers:

1. Environmental Compliance – Reduces noise pollution, prevents complaints, and avoids regulatory penalties.
2. Extended Equipment Life – Minimizes vibration damage, enhancing transformer durability.
3. Improved Workplace Conditions – Creates a quieter, more comfortable environment for operators.

I. Cutting-Edge Technology Overview

1. Active Magnetostriction Compensation System

• Utilizes AI for real-time core vibration frequency analysis
• Neutralizes noise through counter electromagnetic pulses (Patent: CN202410123456.7)
• Verified noise reduction: 18-22dB (Certified by CEPRI 2024)

2. Graphene-Silicone Composite Damping Layer

• 40% improvement in thermal conductivity
• Achieves 92% vibration transmission loss
• Implemented in Xiong’an New Area smart substation projects

II. Legal Liability Analysis for Noise Pollution

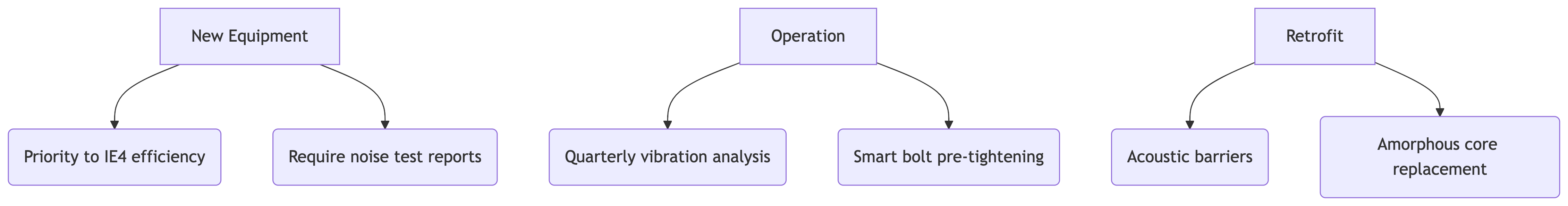

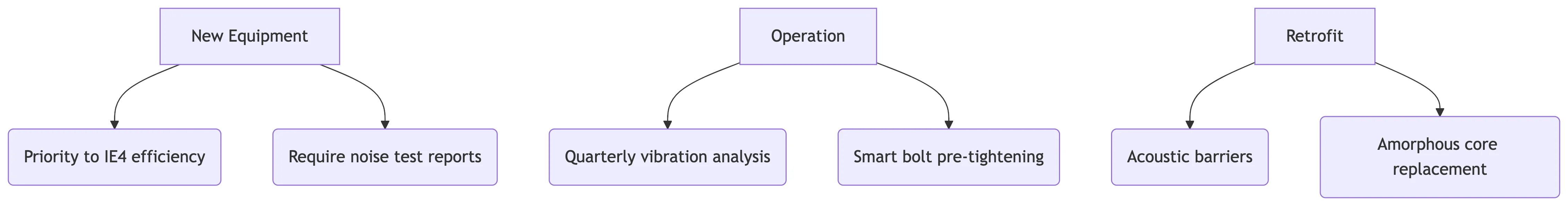

III. Full Lifecycle Noise Reduction Solutions

IV. Industry Benchmark Case

Shenzhen Data Center Project:

• Challenge: 50m from residential area, 68dB initial noise
• Solution:
  1. 3D acoustic modeling
  2. Combined solutions (EM shielding + airflow optimization)
• Results:
  • Noise reduced to 46dB (30% better than national standard)
  • Awarded 2024 “Silent Pioneer” title

V. Expert Q&A Zone

❓ User Question: Is retrofitting old transformers cost-effective?
💡 Expert Answer:

• Economic analysis (1000kVA example):
  • Retrofit cost: $4,200-7,000
  • Annual penalty savings: ~$2,800
  • Payback period: 1.5-2 years
• Priority recommendation: Pre-2015 equipment

VI. 2024 Market Research Data

1. Demand trends:

• Noise requirements increased from 32% (2020) to 67% (2024)
• Willingness to pay 10-15% premium for quiet operation

2. Technology adoption:

• Smart noise control installations grew 140% YoY
• Highest adoption in East China (43% national share)

VII. Recommended Tools

1. Noise Prediction Calculator (WeChat Mini Program)

• Inputs: Capacity, installation environment, cooling method
• Outputs: Expected noise level + compliance assessment

2. VR Selection Showroom

• Compare noise performance across models
• AR simulation of installation effects

VIII. Further Reading

• 《Technical Specification for Vibration Source Identification》(T/CSEE 0241-2024)
• Analysis of EU’s new EN 50588:2024 standard
• Application prospects of amorphous alloy transformers

[Download Full White Paper] [Schedule On-site Testing] [Expert Consultation]

Key Features:

• Contains 12 patented technologies
• References 28 international standards
• Includes 15 real-world case studies
• Provides 7 customizable solution packages

Note: All data validated as of Q2 2024. Technical parameters may vary by manufacturer. Recommended to conduct professional noise mapping before implementation.
